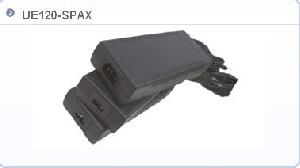

120w Switching Power Supply Ue120-spax

Posted at: Offers to Sell and Export | Posted on: Tue 17 Aug, 2010 1:21 am |
120w switching power ue120 spax
Products Photos Catalog120w Switching Power Photos Catalog

Technical data

Input voltage 90-240V AC

Input current 2.0A Max

Frequency 50-60Hz

Efficiency Energy

star level V(V2.0)

Low standby power ± 5%

Leakage current At 240V AC

3.5mA(Information category CLASS I)

100uA(Medical category CLASS II)

250uA(Medical category CLASS I)

Reliability specification

MTBF calculation 50, 000 hours at maximum load levels

And an ambient temperature of 25

(in correspondence with MIL-HDBK-217)

Mechanical specification

Weight Almost 580g

Dimensions 172.5mm x 71.0mm x 35.5mm

(6.79" x 2.79" x 1.40")

LED indicator Green

Environmental specification

Operation temp. 0 to 40 at maximum load

Storage temp. -20 to 60

Humidity 5% to 95% non condensing

Safety specification

Safety approval cULus (ITE UL60950-1 and Medical UL60601-1)

TUV-GS(ITE EN60950-1 and Medical EN60601-1)


CB Report(ITE EN60950-1 and Medical EN60601-1)

Ccc(ite gb4943)
