1310nm / 1550nm Bi-directional Optical Module

Posted at: Offers to Sell and Export | Posted on: Mon 30 Jun, 2008 7:54 am |

1310nm 1550nm bi directional optical module

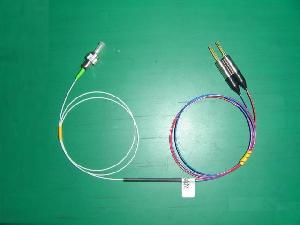

Products Photos Catalog1310nm 1550nm Photos Catalog



Features

High-reliability

Low threshold current and operating current


Operating Wavelength 1310nm/1550nm

High responsivity InGaAs planar PIN detector

Low capacitance,low dark current

Integrated high isolate,low insert loss WDM

Apply for CDMA ,CATV

Built-in Optical Isolator

Optical and Electronic Characteristics

LD

Rated Output power 2-4mW

Rated Output Current Typ 10mA

Operating Current 30mA

Forward Current Typ 1.2mA

Central Wavelength 1310nm/1550nm

Spectral width 1-4nm

Tracking Error -1-1dB

Monitor Current 0.1-0.8mA

Monitor Dark Current <0.1uA

Relative intensity noise Typ -155dB/Hz

Isolation >30dB

PD

RF Bandpass Flatness <4dB

I M D 3 Typ -60dBc

Operating Wavelength 1100-1650nm

Bandwidth >2.5GHz

Capacitance <0.5Pf

Dark Current Tpy Typ 1nA

Responsivity >0.85A\W

Saturation Power Typ 3dBm

CSO Typ -70

CTB Typ -80

Return Optical Loss >45dB
