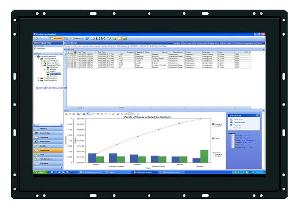

15.4 Inches Industrial Open Frame Monitor Ipmbx-15w

Posted at: Offers to Sell and Export | Posted on: Tue 23 Dec, 2008 7:58 am |

15 4 inches industrial open frame monitor ipmbx 15w
Products Photos CatalogInches Industrial Open Photos Catalog



15.4 inches Wide LCD Industrial Open Frame Flat Panel Monitor IPMBX-15,Touche Sreen Optional



VGA

+ DVI Input ( open frame structure )

IPMBX-15W

15.4"Wide LCD Industrial Open Frame Flat Panel Monitor with VGA + DVI input

IPMBX-15WRTU

15.4"Wide LCD Industrial Open Frame Flat Panel Monitor with VGA + DVI input, with touch screen and USB controller

IPMBX-15WRTC

15.4"Wide LCD Industrial Open Frame Flat Panel Monitor with VGA + DVI input ,with touch screen and RS-232 controller

AV Input ( open frame structure )

IPMBX-15WA

15.4"Wide LCD Industrial Open Frame Flat Panel Monitor with VGA + DVI + S-Video + AV + BNC input

IPMBX-15WARTU

15.4"Wide LCD Industrial Open Frame Flat Panel Monitor with VGA + DVI + S-Video + AV + BNC input, with touch screen and USB controller

IPMBX-15WARTC

15.4"Wide LCD Industrial Open Frame Flat Panel Monitor with VGA+ DVI + S-Video + AV + BNC input, with touch screen and RS-232 controller

DC-PW

DC 7V-28V input power module

15.4" Wide LCD Industrial Flat Panel Monitor

Features

15.4" WXGATFT LCD Panel support1280 x 800pixels

6mm Aluminum front bezel with strengthen glass

Rugged construction and modularized design

Input signal : VGA + DVI + Audio

500 cd/m2 brightness

OSD control keys to optimize the display

Build in 2x 2 Watts stereo speaker

AC 100-240V wide range external ac adapter

NEMA4 / IP 65 compliant front panel

Panel mounting with clip

Meet standard VESA hole ( 75x75 and 100x100 mm ), support desk top stand / wall mount / swing arm mounting

Optional

Video input ( S-Video , Composite , BNC input )

DC power input ( 7 -28V dc input )

Touch Screen

Open frame structure

Specifications

LCD Panel

Display Type: 15.4" WXGA TFT LCD

Screen resolution (Pixels): 1280*800

Brightness: 500 nits

Contrast Ratio: 700:1

Pixel Size: 0.2588*0.2588

Maximun Color: 262K

Viewing angle ( L/R ,U/D ): 70/70 ,60/60

Response Time: 8 ms

Power Consumption: 18 Watts

MTBF: 50,000 hrs.

Signal input

VGA ( 15 pin D-sub connector )+ DVI ( DVI-D connector ) + audio input ( audio jack )

Protect glass

3 mm strengthen glass

Speaker

Built-in 2x stereo speakers(2w)

OSD

Brightness, Contrast, H/V Position, Color, Phase, Clock, auto tune and recall

Touch Screen ( optional )

Internal USB or RS-232 interface controller

Type: Analog resistive type : 25VDC ≥ 20MΩ

Resolution: continuous

Light transmission: 80% or more

Power consumption:<5V @1mA

Surface hardness : 3H

Operating force : ≤100g

Life expectancy : 35 Million

Operation system : Window 98 / 2000 / ME / XP / NT / CE, DOS , Linux

Signal connectivity ( optional )

AV input ( S-Video ,RCA ,BNC )

DC power input ( optional )

Wide range DC 7V-28V input

Power Supply

Input: 100~240VAC,50/60Hz

Output: DC12V@ 4A /48W ,external ac adapter

Construction

Heavy duty steel and aluminum front panel

Environment

Operating temperature: 0 C to 50 C

Storage temperature: -20 C to 60 C

Storage humidity: 10% to 90%non-condensing

Vibration: 17 to 500HZ 1G PTP

Shock: 1G /peak( 11m sec)

Safety

CE/FCC/Rohs

Dimension W x H x D ( mm )

With front panel: 400 x 275 x 57.8

Without front panel: 394 x 269 x 53
