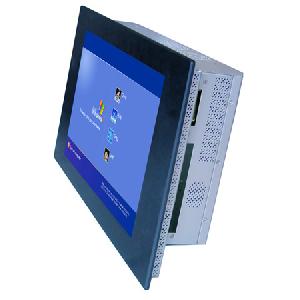

15 Inch Industrial PC IPPC-1542

Features


15" Industrial Panel PC
High performance PC up to Pentium 4
15" XGA TFT LCD
Modularized system Design
Resistive Touch screen (optional)
2-slot PCI extension
NEMA 4/ IP-65 compliant front panel

System


Board size: Mini-ITX (170X 170mm )
Intel® P4 Socket 478 / LGA775 processor up to 3. X G HZ
Upgradable standard SDRAM / DDR memory
System Fan: 2* (60x60x 10mm ) cooling fan
Speaker: 2* 2W Stereo Speaker
OSD : Brightness, Contrast, H/V Position, Color, Phase, Clock, Management
Construction: Heavy duty steel & Aluminum (Front panel)
Dimensions: (WxHxD) With front panel: 436mm * 313mm * 116mm
Dimensions: (WxHxD) W/O front panel: 430mm * 307mm * 111 mm
Packing Dimension: 536 x 395 x 242 mm
NET weight: 10.5KG
Gross weight: 11.6KG
Open frame structure(optional)

LCD


Display Type : 15" XGA TFT LCD
Resolution : 1024 x 768
Max.color : 16M
Luminance : 250 cd/m2
View Angel : 120°(H) , 100°(V)
Pixel Pitch : 0.297 x 0.297 mm
Contrast Ratio : 450 : 1
Response Time : 16 ms
Power Consumption : 9.5W
LCD MTBF : 50,000hrs

Touchscreen(optional)


Type: Analog resistive type : 25VDC ≥ 20M Ω
Resolution: continuous
Light transmission: 80% or more
Controller: RS-232 interface( or USB option)
Power consumption:<5V @1mA
Surface hardness : 3H
Operating force : ≤ 100g
Life expectancy : 1 Million

Storage


CF Socket ( optional )
Interchangeable slim optical drive (Right side)
2.5" ATA / SATA high Capacity HDD (horizontal)


Environmental


Operating temperature: 0 ℃ to 60 ℃ ( 32 ℉ ~ 140 ℉ )
Storage temperature:-20 ℃ to 80 ℃ (-68 ℉ ~ 176 ℉ )
Storage humidity: 10% to 90%non-condensing
Vibration: 17 to 500HZ 1G PTP
Shock: 1G /peak( 11m sec)
Front panel protection: meet nema4&IP65(IPPC)


Power Supply


INPUT: 115~230 VAC,50/60Hz
OUTPUT: ATX250W with PFC +5V@ 12A , +12V@ 10A
150W / 350W power supply ( optional )


Mounting


Wall-mount/Desktop stand/swing arm
Meets standard VESA (75/ 100mm ) mounting


Ordering Information

IPPC-1542-250X Industrial Panel PC with 15" TFT LCD with 250 W power supply.
IPPC-1542T-250X
Industrial Panel PC with 15" TFT LCD/Touch screen, with 25 0W power supply.

OPPC-1542-250X Open frame Industrial Panel PC with 15" TFT LCD and 25 0W power supply.
OPPC-1542T-250X Open frame Industrial Panel PC with 15" TFT LCD/Touch screen and 250 W power.
