15 Inches Lcd Industrial Hmi Monitor Iec-615

Posted at: Offers to Sell and Export | Posted on: Wed 03 Nov, 2010 3:46 am |
15 inches lcd industrial hmi monitor iec 615
Products Photos CatalogInches Lcd Industrial Photos Catalog

touch panel lcd monitor, 17 inches LCD panel display, Resistive touch screen.VGA/AV/USB(COM optional)


monitor > HMI lcd > HMI display > 15 inches industrial touch panel display IEC-615

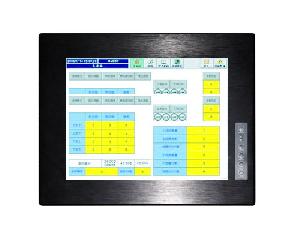

15 inches HMI lcd monitor display IEC-615, NEMA4 / IP 65 compliant front panel. Factory Price, Oem services.

15" Industrial LCD Flat Panel Monitor


15" TFT LCD Panel support 1024x768 pixels

Material: Aluminum magnesium Alloy

Rugged construction design

Input signal : VGA/AV

250 cd/m2 brightness

Resistive type of touchscreen

NEMA4/IP65 compliant front panel

Panel mounting with clip

Meet standard VESA hole, support desktop stand / wall mount / swing arm mounting



Size 15"TFT LCD

Resolution 1024x768

Color 16M

Backlight 2xCCFL

Luminance 250 cd/m2

Contrast Ratio 450:1

View Angle 120(H), 110(V)

LCD MTBF 50, 000hrs


Construction Aluminum magnesium Alloy

Color Black

I/O DC input/VGA/AV/USB(COM optional)

Installation Install on desk, Hanging on the wall or VESA cantilever install

Power Supply DC12V input


Type Resistive Touchscreen

Resolution 4096*4096

Controller Interface Internal USB ( RS-232 interface option)

Light Transmission 81% or more

Operating Force 250g

Life Expectancy 10 Millions


Oprerating Tempreture 0 C to 60 C

Storage Humidity 5% to 95% at 40C, on-condensing

Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration

Shock 10G peak acceleration (11 msec. duration)

IP Leve (Front Panel) IP65

Safty FCC/VDE(Level A)

MBTF >50, 000hrs

Packing info

Dimensions(WxHxD) 414x320x55mm

Packing Dimension 530x440x150mm

NET weight 4.5KG

Packing list 12v at 10A Power adapter x1, User manual x1, Warranty card x1, Packing list x1, Driver CD x1, Screws x1 bag, Touch pen x1, Clipx4

Ordering informations

IEC-615 IEC-615 Chassis, 15" TFT LCD, 15" touchscreen, VGA
