17 Inch Lcd All In One Panel Pc Ppc 1705
Posted at: TradersCity --> Offers to Sell and Export
Posted on: Thu 03 Jan, 2008 1:56 am
LCD Panel Computer > LCD Panel PC > 17 Inch All-in-one Panel PC
our website:www.annso.com

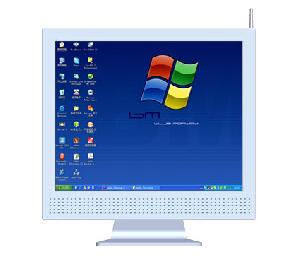

All-in-one 17" LCD Panel
Introduction
The display is the computer .The entire computer, including a VIA C7 based platform, slot-loading optical drive, hard disk, card reader, speakers, and even the power supply integrates inside a dazzling display. It combines all your life, music, photos, movies, email--- within a monitor-based space. You may enjoy the space you saved, the enchanting screen you earned and the comfortable user interface you are familiar to.
Specifications
CPU
* VIA C7-D 1,5GHz Processor
Chipset
*VIA CN700 + VT8237R Plus
Memory
*1x DDR2 DIMM Socket accept 533/400MHz up to 1GB
HDD
*3.5" x1 and 2.5" x 1
Optical Device
*Slim CDROM/DVDROM/Combo(DVD+CDRW)DVD ± RW
Display/Resolution
*17 inch TFT LCD (SXGA 1280 x 1024)
Expansion Slots
*1 x PCI slot
Audio
*Built-in 2x stereo speakers( 1.2 w)
*8237R Plus Audio Controller w/ VT1613 Audio Codec for 2 channel output,
LAN
* Single LAN onboard: VT8237R Plus integrated 10/100 Fast Ethernet w/VT6103(PHY), full duplex with RJ 45 connector onboard
*Compliant with IEEE 802.3x
USB Port
*Max . 6x USB2.0 ports
VGA Port
*Integrated VIA UniChrome Pro 2D/3D Graphics & Video Processor with MPEG-2 Decoding Acceleration
Multi-Media Card Reader
*CF/Micro Drive/MS Pro(Due)/SM/SD/(RS)MMC/XD(Optional)
Back Panel I/O Ports
1xPS/2 Keyboard: 1xPS/2 Mouse;1xRJ45;2xusb 2.0;1xParallel; 3xSerial ; 1xVGA ; 1xAudio I/O; 1xPower connector;
Wireless LAN
32bit PCI card Interface. (Optional),Support 64 and 128 bit WEP Encryption
*802.11b:11Mbps Up to 180m(Outdoor), 35- 60 m(Indoor)/
*802.11g:54Mbps up to 50m(Outdoor),20m(Indoor)
Touch Screen
Internal RS-232 for Touch Screen Control Board(Optional)
Watch Dog
SIO chip build in, programmable 1~255
Power Lost Recovery
System will auto power on when power failure
Power Adapter
*Input: AC/100-240V(50/60Hz)2.5A
*Outpu t : DC/19V.7.5A 150W
Measurements
Len g th: 40.00 cm; Wide: 35.68 cm;Thick: 8.68 cm(Without the stand)
Weight
Support
Support VIA C7-D 1.5GHz CPU
DDR2 RAM up to 1GB
Space for SATA 3.5"HDD x1 and 2.5" HDDx1
Slim CD/DVD/COMBO/DVD Dual
Optional
Wireless LAN
Touch Screen
Card Reader
Ordering Information
PPC-1705
17" all in one lcd pc barebone
PPC-1705T
17" all in one lcd pc barebone with touch screen
_________________
Contact Name: Evan Wan
Company Name: Annso Technology Co., Ltd
Email: Boywwp@gmail.com
Tel: 0769-81666360
Fax: 0769-81666306
Street Address: The south faces industry
area of Xia Gang Fu Hai road,Chang'an
Town, Dongguan City, Guangdong, China
|
Posted By Evanwan
Country:  China
Member Since: 07 December 2007
Total Leads: 17
Business focus: Industrial Computer, Industrial Pc, Computer Chassis, Mini Itx Case, Lcd Workstation, Kvm Switchs, Lcd Media Player, Advertising Lcd Player, Lcd Monitor

|
 |
|
|
|
|
|
|
|
