2-stroke Trench Tamper Specifications

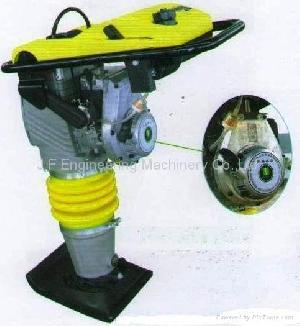

Model JF60 2-stroke Tamping Rammer
Rate 700 blows/min
Percussion Force 16kn
Force /per below 100J
Travel speed 9.5m/min
Surface Capacity 230m2/h
Engine 1E45F-3B (copy of WM80)
Engine Type 2-stroke air-cooled
Max. Power 2.0kw
At 4400 rpm
Fuel Tank Capacity 3L
Fuel Type Mixture oil
Fuel Consumption 1 l/h
Operating Weight 67kgs
Working Width 11"
Packing size (mm) 1100*820*430
Container loading quantity 72pcs/20GP
Documents Instruction, packing list, certificate of guarantee
Spare parts Wrenches, Screw M6*16, Nut M6, Spark plug, Gaskets, fuel bottle
Copy from Wacker BS60Y 2-stroke gasoline powered jump jack.
This Jump Jack tamping rammer is designed for the compaction of cohesive, mixed and granular soils in confined areas.
Ideally suited for compaction of backfill around foundations and forms, subgrades underneath footings and base preparation for concrete work such as slabs, curbs and gutters.
Also useful for various utility and municipality related jobsites for compaction over pipelines, gas and cable trenches and base preparation for patching of streets and sidewalks.
-2-cycle engine, specificaly designed for rammer applications, meets EPA air emissin standards.
-Large enclosed air filtration system is easy to clean and protected from damage
-Single lever controls engine starting, speed, and stopping
-Exclusive noise reducing cover lowers the amount of engine and shoe noise transmitted
to the operator
-Large capacity, corrosion proof fuel tank with self-cleaning, in- tank filter offers long life and minimum maintenance.
-Well-balanced, lightweight machine for easy operation and transportation.
-Shockmounted guide handle with special design minimuzes operator fatigue.
-Fuly sealed, oir-lubricated ramming system ensures trouble-
free operation and fast cold weather start up.
-Tinker-proof diaphragm carburetor eliminates unauthorized adjustments
-Long shoe stroke gives excellent compaction even in difficult-to-compact cohesive soils.
