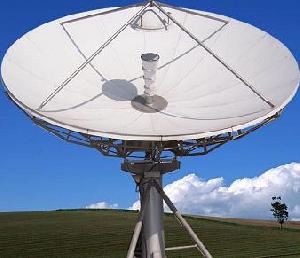

4.5 Meter Earth Station Antenna

Posted at: Offers to Sell and Export | Posted on: Tue 22 Dec, 2009 9:54 am |

4 5 meter earth station antenna
Products Photos CatalogMeter Earth Station Photos Catalog



Antesky science technology inc.

Specification


electrical specification:

Operating Frequency,

GHz

C-Band:Rx(3.625-4.2) Tx(5.85-6.425)

Ku-Band:Rx(10.95-12.75) Tx(14.0-14.5)

Polarization:Linear/ Circular Linear

Radiation Pattern:First Sidelobe less than -14, Meet ITU-RS.580-5 and other requirements

mechanical specification:

Azimuth +-60deg (Continuous)

Elevation 0deg-90deg(Continuous)

Polarization 180deg(Continuous)

Finishes Reflector Surface Pedestal & Back Structure Aluminum panels with high-diffusing white paintThermal Spraying Zinc

environmental specification:

Operational Wind 72km/h Gusting to 97km/h

Survival Wind 216km/h

Temperature - 40degC - + 60degC

Relative Humidity 100%

Solar Radiation 1135Kcal/ h/ m2

Seismic (Survival) 0.3g (H), 0.15g (V)
