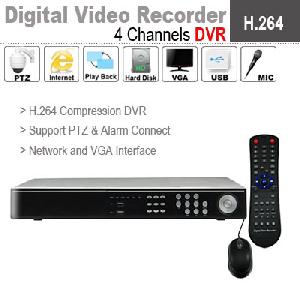

4ch H264 Surveillance Standalone Network 120fps Recording Security Cctv

Posted at: Offers to Sell and Export | Posted on: Thu 02 Jun, 2011 9:19 am |
4ch h264 surveillance standalone network 120fps recording security cctv
Products Photos Catalog4ch H264 Surveillance Photos Catalog

H.264 DVR main profile compression

400/480fps recording for D1

16channels real-time playback


smart mobile and network real time remotely monitoring, such as iPhone, Blackberry, Android, Nokia and windows mobile.

Support DVD-RW installed inside the DVR


1.H.264 main profile compression algorithm ideal for standalone dvr player

2.Realtime live display up to 16 cameras

3.Pentaplex function:live, recording, playback, backup & remote access

4.Support Combined encoding streams which evolve from dual-streams and strengthen it, flexible for network transmission

5.Multiple control methods:front panel, IR remote controller, USB mouse

6.Smart video detection:motion detection, video blind and video loss

7.Smart camera settings:privacy masking, camera lock, color setting, and tittle display

8.Pan Tilt Zoom and Speed Dome Control:more than 60 protocols supported, preset, scan, auto pan, auto tour, pattern, auxiliary function supported

9.Easy backup methods: USB devices, remote network and client software backup

10.Alarm triggering screen tips, buzzer, PTZ preset, show message, e-mail, snapshot &FTP upload

11.Smart HDDs Management:non-working HDD hibernationg, HDD faulty alarm, Raid function

12.Powerful network software:buile-in web server, multi-DVR client &CMS Networking access for remote live viewing, recording, playback, setting, system statu, event log, e-mail & ftp function

13.Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support web client, standalone client and SDK

14.With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up. With the unique black box technology, can monitor the whole run process of the equipment, can greatly reduce the maintenance costs

15.Enable strong multi-way synchronization with max 16 channel playback in D1, realize the zero-delay between playback channels

Operation System :Embedded LINUX

Compression :H.264

Video Input :16 Channel

Video Output :2 Channel (1BNC+1VGA)

Audio Input :16 CH

Audio Output :1CH

Alarm Input :16 CH

Relay Output :4 CH

Zones:396(22*18)detection zones, Sensitivity:1-6(6 is highest)

Trigger recording, PTZ movement, tour, alarm, e-mail, snapshot & FTP

Bidrectional Talk Suport

Display Frame Rate : NTSC:30 FPS, PAL: 25 FPS

Record Frame Rate : D1@25fps, HD1@50fps, CIF@100fps

Record Mode :Manual>Alarm>Video Detection>Continuous

Record Resolution :"PAL:D1(704*576), HD1(704*288), CIF(352*288)

Ntsc:d1(704*480), hd1(704*240), cif(352*240)"

Playing Mode :"Max 16 channels playback simultaneously, Pause, stop, rewind, fast play, slow play, next file, previous file, repeat, shuffle, backup selection"

Searching Mode :Time/Date, Alarm, Motion Detection & exact search(accurate to second)

HDD :4 SATA ports(max 4x 2048G) ; 8 SATA ports is optional

Network : "RJ-45 10/100M 1000M

PTZ Control: 1 RS485, 1 RS232

Remote Control :Yes

USB Mouse Control :Yes

USB Port : USB2.0x2

Language Support :English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese, Traditional Chinese, Turkish, optional

VGA Display :Yes

Software Upgrade :USB/IE

Power Supply : 12V / 7A, standard ATX power

Working Temperature : -10 C - + 50 C

Working Humidity :10% - 90%

Packing Dimension(L x W x H) :440*400*94mm
