6000lb Off-roader Winch

Posted at: Offers to Sell and Export | Posted on: Mon 16 Aug, 2010 6:04 am | Product Category: Winches [166]

6000lb roader winch
Products Photos Catalog6000lb Roader Winch Photos Catalog



Fly-Autoparts supply winch, such as car winches, off roader winch, truck winch, trailer winch, manual



winches, 4wd winch, electric winches, winch accessories, and winch & compressor.

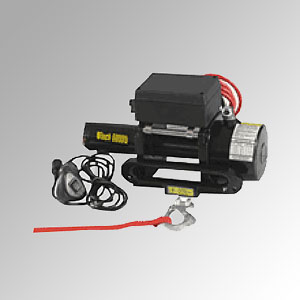

6000LB Off-Roader Winch

Specification:

Rated line pull: 6000 lbs(2948 kgs)

Motor: Permanent magnet, 1.3kW/ 1.6hp( 12V); 1.1 kW/1.55hp(24V)

Gear reduction ratio: 215:1

Cable (Dia~L): ¢ 9/32"*79' (¢7.2mm*24m)

Overall dimensions (L* W* H): 17.3"*7.1 "*6.8" (440mm*180mm*173mm)

Mounting bolt pattern: 6.55"*4.5" (166.4mm*114.3mm)

Weight: 55.01bs(25kgs)

Line Speed And Amp Draw (First Layer) 12V

Line Pull

Lbs(kgs) line Speed

ft/min(m/min) Motor

a

12v dc 12v dc

0 lO.O(3.1) 30

2000(907) 7.5(2.3) 120

4000(1814) 4.9(1.5) 210

6000(2720) 2.9(0.9) 320

Line pull and rope capacity in Layer

Layer Rated Line Pull

Lbs(kgs) Total Rope ON Drum

ft(m)

1 6000(2722) 13.0(4.0)

2 4990(2265) 29.0(9.0)

3 4280(1940) 48.0(14.6)

4 3730(1690) 69.0(21.0)

5 3310(1500) 79.0(24.0)

Related Car Winch Products:

CW0002 3000LB Car Winch CW0003 2000LB Car Winch

CW0004 2000LB Car Winch CW0005 1500LB Car Winch

OW0001 5000LB Off-roader Winch CW0003 7000LB Off-roader Winch

OW0004 7500LB Off-roader Winch CW0005 8000LB Off-roader Winch

OW0006 8500LB Off-roader Winch CW0007 9500LB Off-roader Winch

OW0008 12000LB Off-roader Winch
