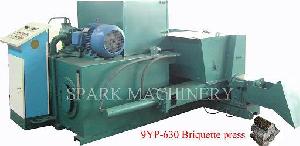

This machine is used for making briquette from sawdust, straw, hulls, rice hull,branch,leaf,etc .These
raw materials are pressed and chared into solid fuel,the shape could be square and round type .The working process doesn’t require any additive. Less smoke while burning.
This machine can make the folllowing 4 types final briquette:
1.Round type with diameter 90mm and length 50-150mm. the capacity is 360-450kg/h and the density is above 1t/CBM.
2.Round type with diamter 180mm and length 30-50mm. the capacity is about 1000kg/h and product's density is about 0.7t/CBM.
3.Small square type with dimension 200mmX200mmX60mm,the capacity is about 960kg/h,the density is about 0.6t/CBM.
4.Big Square type with dimension 400mmX200mmX500mm,the capacity is about 1200kg/h,the density is about 0.5t/CBM.
Head of briquette:2 pcs for the two round types briquette and the small square type. 1piece for the big square type.
Machine weight: 3200kg
Motor power: 22kw/380v(usually for capacity under 1000kg/h) or 30kw/380v(usually for capacity above 1000kg/h).
Electrical pipe: 1.5kw/220V
Hydraulic oil in the hydraulic tank: 400kg
Calorific value of the briquette: 4200Kcal/kg
Ash in the briquette: 4-8%
