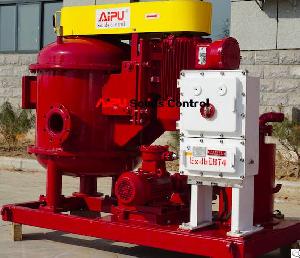

Aipu solids control produce high quality vacuum degasser used in well drilling mud cleaning system. Such
degasser is widely known as the 2nd purification equipment in drilling fluid process. It will be set after shaker and ahead of desander or mud cleaner.
Please refer more information about APZCQ degasser below
Features Of AIPU Vacuum Degasser
1. Self-suction requests on an extra pump to feed it.
2. High efficiency up to 95%.
3. Great painting works inside for longer service life under corrosive condition.
4. Many options for standard or certification: IECEX, ATEX, UL, DGMS, CE, and so on.
5. Compact and small footprint
The function of vacuum degasser is breaking the air and gas out, such as methane, H2S, and CO from the mud to the surface. Usually, fluid is sucked from shaker tank under vacuum force. Furthermore, vacuum degasser plays the role of agitation on drilling fluid. Based on universal design, Aipu vacuum degasser can be customized according to your practical demand.
Model APZCQ240 APZCQ270 APZCQ300 APZCQ360
Max. Capacity 240m³/h 270m³/h 300m³/h 360m³/h
Ratio 1.68 1.68 1.68 1.72
Efficiency ≥95% ≥95% ≥95% ≥95%
Main Motor 15KW 22KW 30KW 37KW
Pump Motor 2.2KW 3KW 4KW 5.5KW
Speed 860rpm 870rpm 876rpm 880rpm
Dimension 1750×900×1510mm 1950×1010×1680mm 2250×1235×1650mm 2400×1500×1900mm
Weight 1200kg 1450kg 1960kg 2510kg
