Antesky 4.5m Vsat Antenna

Posted at: Offers to Sell and Export | Posted on: Wed 01 Jul, 2009 2:15 am |
antesky 4 5m vsat antenna
Products Photos CatalogAntesky Vsat Antenna Photos Catalog

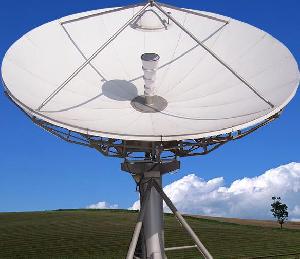

Antesky 4.5m VSAT antenna

4.5m antenna reflector incorporates stretch-formed doubly contoured panels

with matched radials and hub for ease of field alignment.


Meets or Exceeds CCIR 580 and INTELSAT Requirements

High G/T, Excellent Pattern Characteristics

Thermal Spaying Zinc Steel Ground Mount Assembly

C-band Antenna Operating in 800MHz Bandwidth Option

2-port, 3-port or 4-port Linear/Circular Feed

Field Changeable Feed System, Switchable Circular to Linear C-band

Antenna Az 0-360deg Continuous Pointing Range


Electrical specification:

Operating Frequency, GHz

C-Band:Rx(3.625-4.2) Tx(5.85-6.425)

Ku-Band:Rx(10.95-12.75) Tx(14.0-14.5)

Polarization:Linear/ Circular Linear

Radiation Pattern:First Sidelobe less than -14, Meet ITU-RS.580-5 and other requirements

Mechanical specification:

Azimuth +-60deg (Continuous)

Elevation 0deg-90deg(Continuous)

Polarization 180deg(Continuous)

Finishes Reflector Surface Pedestal & Back Structure Aluminum panels with high-diffusing white paintThermal Spraying Zinc

Environmental specification:

Operational Wind 72km/h Gusting to 97km/h

Survival Wind 216km/h

Temperature - 40degC - + 60degC

Relative Humidity 100%

Solar Radiation 1135Kcal/ h/ m2

Seismic (Survival) 0.3g (H), 0.15g (V)

Contact person:Byron Xue

tel 0086-29-88352448

fax 0086-29-88352334

Company Contact:

No member photo
Contact Name: Byron Xue
Company Name: Antesky Science Technology Inc.
Email: Email
Tel: +86-29-88352448
Fax: +86-29-88352334
Street Address: Zhongtian
International Mansion, Taibai South
Road, Xian, Shaanxi, China
Website: http://www.antesky.com
Member name: antesky
Country: China-CN China
Member Since: 18 February 2009
Total Leads: 41 antesky Import Export Business Leads
Business focus: Satellite Communication Earth Station Antenna
