Automatic Punch Slug Detector Rm1310
Posted at: Offers to Sell and Export | Posted on: Saturday 2 June 2012 12:58 am | Poster last visit: Friday 9 August 2013 |
Product Description:

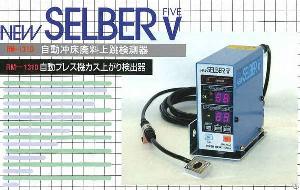

Automatic Slug Detection Device
New selber v
Rm-1310
This device will detect the slugs coming up by
detecting the displacement of stripper plate when slugs come up. The displacement is detected by the sensors, which are installed on the stripper plate.
Monitoring accuracy : +/-1μm
Characteristics
Achieved a low price.
Quick replacement is achieved by interchangeability of sensor.
Timing sensor is not required since it has internal synchronization.
Digital type achieved simple operation. (There is no variation in operator.)
Detection Method
The slug, which is caught in upper or lower surface of the raw material will be crashed by stripper plate of the die which has spring loaded stopper at B.D.C. However, 20 to 40% of slug thickness (depends on material) will be remain and it will shift the position of stripper plate. This device will detect the displacement of the stripper plate by comparing with normal position.
This device will not be affected by the change of material thickness or rise in temperature of the unit since it compares the displacement of the stripper plate at every stroke.
This device is not be affected by the bound or spring load of the stripper plate due to bottom hold type system which only detects the lowest point of the stripper plate by using micro processor.
Company Contact:
Contact Name: Jack
Company Name: Shandong Laien Optic-Electronic Technology Co., Ltd
Email:
Tel: 86-537-3926517
Fax: 86-537-3926519
Street Address: West Shanbo Road,
Rencheng Economic Development Zone,
Jining City, Shandong Province, 272000, China
Website: http://www.laien.cn
Member name: laientech
Country:
China
Member Since: 01 June 2012
Total Leads: 40 laientech Import Export Business Leads
Business focus: Safety Light Curtains, Safety Light Curtain Sensors, Punch, Press Portection Devices, Safety Relays, Sensor
Chat:
Verify: Safe Import Export Tips
New selber v
Rm-1310
This device will detect the slugs coming up by
detecting the displacement of stripper plate when slugs come up. The displacement is detected by the sensors, which are installed on the stripper plate.
Monitoring accuracy : +/-1μm
Characteristics
Achieved a low price.
Quick replacement is achieved by interchangeability of sensor.
Timing sensor is not required since it has internal synchronization.
Digital type achieved simple operation. (There is no variation in operator.)
Detection Method
The slug, which is caught in upper or lower surface of the raw material will be crashed by stripper plate of the die which has spring loaded stopper at B.D.C. However, 20 to 40% of slug thickness (depends on material) will be remain and it will shift the position of stripper plate. This device will detect the displacement of the stripper plate by comparing with normal position.
This device will not be affected by the change of material thickness or rise in temperature of the unit since it compares the displacement of the stripper plate at every stroke.
This device is not be affected by the bound or spring load of the stripper plate due to bottom hold type system which only detects the lowest point of the stripper plate by using micro processor.
