Ball Mill For Mining

Posted at: Offers to Sell and Export | Posted on: Fri 18 Jun, 2010 8:06 am | Product Category: Ball mills [491]

ball mill mining
Products Photos CatalogBall Mill Mining Photos Catalog

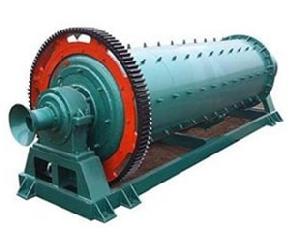

Ball mill

Working Principle of Ball mill


A ball mill has rotating cylinder that is mounted horizontally

and is controlled (driven) by an outer gearwheel. A quill shaft uniformly transfers the material to the grinding chamber. The chamber consists of different specifications of steel balls such as ladder linear and ripple linear.

Rotation of the horizontal cylinder creates centrifugal forces which elevates the balls to a certain height where they fall back, grinding the materials. The ground material is then discharged.

Regular Specifications of ball mill

Model Capacity t/h Power Weight

D900*1800 0.65-2 18.5 4.6

D900*3000 1.1-3.5 22 5.6

D1200*2400 1.5-4.8 30 12

D1200*3000 1.6-5 37 12.8

D1200*4500 1.6-5.8 55 13.8

D1500*3000 2-5 75 15.6

D1500*4500 3-6 110 21

D1500*5700 3.5-6 130 24.7

D1830*3000 4-10 130 28

D1830*4500 4.5-12 155 32

D1830*6400 6.5-15 210 34

D1830*7000 7.5-17 245 36

D2100*3000 6.5-36 155 34

D2100*4500 8-43 245 42

D2100*7000 8-48 280 50

D2200*4500 9-45 280 48.5

D2200*6500 14-26 380 52.8

D2200*7000 15-28 380 54

D2200*7500 15-30 380 56

D2400*3000 7-50 245 54

D2400*4500 8.5-60 320 65

D2700*4000 12-80 400 94

D2700*4500 12-90 430 102

D3200*4500 Depending on 800 137

technological conditions



Company Contact:

AnshanNewfotonIndustry photo
Contact Name: Iris Wang
Company Name: Anshan Newfoton Industry Co., Ltd.
Email: Email
Tel: 86-0412-6595138
Fax: 86-0412-8606018
Street Address: Room1112,
Pengchengyuan Building, Guangming
Street, Anshan City, Liaoning
Province, China 114001
Website: http://www.newfoton.com
Member name: AnshanNewfotonIndustry
Country: China-CN China
Member Since: 23 April 2010
Total Leads: 20 AnshanNewfotonIndustry Import Export Business Leads
Business focus: Slew Bearings, Slew Drives, Slewing Ring, Gear, Girth Gear, Gear Ring, Pinion, Slag Pot
