Ball Nose End Mill Grinder
Posted at: Offers to Sell and Export | Posted on: Sunday 21 August 2011 2:15 pm | Poster last visit: Thursday 23 October 2014 |
Product Category: Main
» Mining and Well Drilling Machinery and Accessories
» Mining and quarrying machinery and equipment
» Crushers and breakers and grinders
» Ball mills
» Ball Nose End Mill Grinder
Product Description:

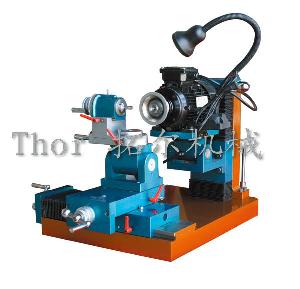

Ball nose endmill grinder TR-320
Cutting speed
TR 320 universal tool sharpening machine's cutting hard
alloy speed is 30 times than domestic ordinary sharpening machine, it make the cutting effctive and sharpening incision is smooth.
Cutting precision
TR 320 universal tool sharpening machine have break the traditional design, three axis with precision screw propulsion, precision grinding. It can grinding standard ball head, a knife cutting knife, center, taper drill umbrella tooth knife, T knife, drill, and lathe tools, reamer, face-sides cutters and cutting tools. Through the rotating plate and the board can grinding ball head 20-R1, ball head 20-R2 and so on.
Sharpening life of the machine
TR 320 universal tool sharpening machine adopt tough FC30 casting to pedal and pillar, the key part is through quenching vacuum, with domestic famous brand machine tool accessories, each place can significantly reduce wear and keep mechanical precision. Grinding head and motor rotor head with the imported bearing, greatly guarantee and extended the service life of working head and motor, and to ensure the precision of work head and reduce the output power consumption of motor. Rotating board installed the flat bearing and sealing ring, can guarantee the grinding dust not easy into the rotor position, improve the service life of the machine.
Grinding wheel loss
If customers use ordinary alloy wheel, the loss will half than domestic ordinary sharpening machine, if use high quality alloy wheel, the loss will be less three quarters.
Specification
Horizontal travel of the operating table
200mm
Longitudinal travel of the operating table
100mm
Area of the operating table
600*500mm
Elevating distance of wheel head
100mm
Rotating angle of wheel head
40degree
Grinding wheel size
100*50*32mm
Speed of grinding wheel
2800rpm
Horse power and voltage of motor
1.1kw 380/220v
Gross weight
150kg
Package size
700*800*800mm
Packing list:
Main unit
1
Grinding wheel 400#
1
R8 collet
8
Wrench 27-30
1
Oil gun
1
Endmill grinding work head
Optional
Operate manual
1
Vedio
1
Company Contact:
Contact Name: Jacky
Company Name: Dongguan Thor Machinery Co., Ltd
Email:
Tel: 0086-0769-81177281
Fax: 0086-0769-81177281
Street Address: No 1 Industrial Avenue,
Hengli Town, Dongguan City,
Guangdong Province, China
Website: https://www.thorgrinder.com
Member name: Thorgrinder
Country:
China
Member Since: 19 July 2011
Total Leads: 66 Thorgrinder Import Export Business Leads
Business focus: Drill Grinder, End Mill Grinder, Screw Tap Grinder, Chamfering Machine, Cutter Grinder, Tool Grinder, Saw Blade Sharpener, Lathe Tool Grinder
Chat:
Verify: Safe Import Export Tips
