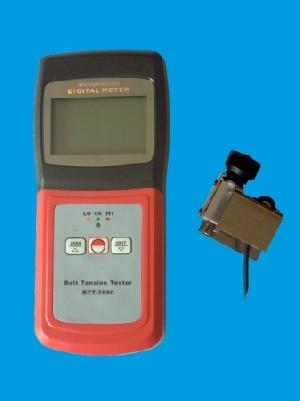

Belt Tension Tester

Posted at: Offers to Sell and Export | Posted on: Thu 26 Mar, 2009 8:15 am | Product Category: Tension testers [6]
belt tension tester
Products Photos CatalogBelt Tension Tester Photos Catalog

Model: BTT-2880

Application: The measuring head is placed on the belt and the clamp is tightened using

the clamping knob. This deflects

the belt through a known angle defined by the anvil and the fixed pillars. A load cell attached to the clamp measures the

force required to deflect the belt. which is proportional to the tension in the belt. The output voltage from the load cell is

digitized and scaled to give the correct tension reading on the instruments display.


Display: 4 digits, 10 mm LCD with colored coded LED indication of Low, Ok and Hi.

Measurement range:

0-750 Newtons

0-120 Pounds

0-77 Kilograms

0-114 Seems

Belt width: Up to 36mm

Overload alarm: 750 Newtons

Maximum load: 850 Newtons

Resolution: +-1 Newtons or 1 least signinficant digit of other units

Accurancy: +-5% of full-scale

PC interface: RS232C interface

Audible warning: Piezoelectric sounder

Power supply: 4*1.5V AAA size batteries

Dimensions: 135*62*33mm or 5.3*2.4*1.3inch

Weight : 335g( not including batteries)

Standard accessories included:

Measuring head............1 pc

Carrying case.................1pc

Operation manual...........1pcs

Optional accessory: Cable and software for RS232C and USB
