Big Jumbo Roll Slitter And Rewinder

Technical Data For Three Models

Description - 1800c / 2300c / 2500c

Mother Roll Reel Width
Mother Roll Maximum Diamete
Standard Core
Rewind Roll Maximum Diameter
Weight Of Unit (machine)
Overall Dimension
Main Motor Power
Torque Motor
Slitting Speed
Acceptable All Raw Materials
Electrical Voltage
With Built-in Auto Meter Counting
With Built-in Auto All Rolls Tension
Inclusive Of Manual Instruction Book
All Essential Tool Kits -
-
-
1800mm / 2300mm/ 2500mm
1.5 M
76mm
1.3 M
From 3000 To 8000 Kg
From 2600 X 2200mm & Above
3 – 15 Kw
40 – 100 N/m
From 16 To 200 M Per Minute
50gsm Up To 750gsm
380 V / 3phase / 50 Hz
Yes
Yes
Yes
Yes

Video Presentation: Click Here

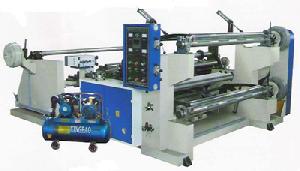

Tk Sr 1300c Jumbo Roll Slitter & Rewinder



1.specifications:

Max. Unwinding Width: 1300mm
Max. Unwinding Dia: Φ1,000mm Max. Rewinding Dia: Φ450mm
Machine Speed: 200m/min, Slitting Speed: 180m/min
Slitting Precision: ±0.15mm
Slitting Material Thickness: Paper In 50~800gsm And Plastic In 0.2~1.2mm
Unwinding, Rewinding Roll: 3” Pneumatic Expanding Shaft
Voltage: Three-phase Four-wire System, 380v 50hz

2.technical Requirement:

Tension Control System, And It Is Displayed On Control Board
Adopts Frequency Converter (3kw, Emerson), Speed Can Be Displayed On Control Board
Electromagnetic Clutch: 10kg/m2 X 2pcs; Automatic Braking Device: 10kg/m2 X 1pc;
Two Cutting Types: Knife And Round Cutter. Min. Cut Width: 10mm (knife); 30mm (round Cutter)
Adopts Photocell Tracking System Imported From Germany
Adopts Air Blower To Blow Out The Waste Edge
Adopts Emergency Stop Switch
Automatic Counting System
Weight: 1800kg
Overall Dimension( L X W X H): 2100 X 2200 X 1500mm; (main Body)
2100 X 1100 X 1000mm (unwinding Base)


Tk Sx 1400 / 1600 A

Heavy Duty Jumbo Roll To Roll Slitter & Rewinder



Main Features:

Machine Roll Width
Machine Roll Diameter
Paper Roll Core Internal Diameter
Paper Loading (unwinding)
Rewinding Roll Diameter
Rewinding Roll Shaft Id
Machine Slitting/rewinding Speed
Main Machine Power
Cutting Paper Electrical Power
Machine Dimension (main Front)

Machine Dimension (back Section)

Machine Weight (net) -
-
-
1400mm 1600mm
1.5m 1.5m
76mm 76mm
Hydraulic Lift
1.2m 1.2m
76mm 76mm
30 – 150m / Minute
4.0kw
1.1kw
2400 X 2300 X 1500mm / 2600 X 2300 X 1500mm
2400 X 1400 X 1250mm / 2600 X 1400 X 1250mm (length X Width X Height)
2500kg 2900kg

Brief Technical Data:

- Tension Control System Complete With Displayed Control Panel Board

- Adopts Frequency Converters (3kw)

- Speed Can Be Displayed On Control Panel Board

- Complete With Electro-magnetic Clutches & Auto Braking Device

- Minimum Cutting Roll Width: 30mm

- Equip With Rotary Knife Of 10mm Width

- Adopts Imported Photocell Tracking System

- Removable Waste Paper Trimming Through Air Blower System

- With Emergency Stop Switch

- Automatic Counting System
