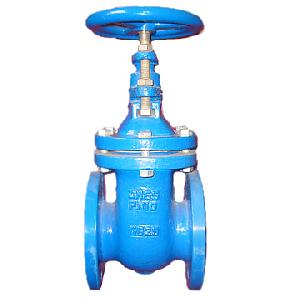

Cast Iron Gate Valve Din3352 F4 Non-rising Stem

Posted at: Offers to Sell and Export | Posted on: Wed 10 Sep, 2008 9:05 am |

cast iron gate valve din3352 f4 non rising stem
Products Photos CatalogCast Iron Gate Valve Photos Catalog



Design Standard : DIN3352

Face to Face : DIN3202 F4

Flange Drilling : DIN2532,DIN2533,ect.


Testing

Conform to DIN3230

Working Temp: 100 C

Working Pressure: PN10 or PN16

Suitable Media: Water,Steam,Oil

2)Main Parts Name and Material

Body: GGG50

Disc: GGG50+EPDM/NBR

Stem Nut: Brass

Stem: X20CR13

Bonnet: GGG50

Handwheel: Steel/GGG50

Dust ring: EPDM/NBR

Sealing ring: PTFE

O-ring: NBR/EPDM

Nut: Brass

Holding Ring: Brass

3)Size

1-1/2"~14"

4)Pressure

PN6, PN10, PN16

http://www.zmcsteel.com for more other products



Company Contact:

No member photo
Contact Name: Jorge Yang
Company Name: Zmc Metal
Email: Email
Tel: 86 571 28938368
Fax: 86 571 87922182
Street Address: Zmc Building, 101-2#,
Zhongshan Rd, Hangzhou, 310003,
Zhejiang, China
Website: http://www.zmcsteel.com
Member name: Zmcmetal
Country: China-CN China
Member Since: 16 January 2008
Total Leads: 397 Zmcmetal Import Export Business Leads
Business focus: Valves, Pipes, Fittings, Flange, Elbow, Clamp
