Casting Pu Tube For Flexible Seal Production

Posted at: Offers to Sell and Export | Posted on: Wed 15 Sep, 2010 7:08 am |

casting pu tube flexible seal
Products Photos CatalogCasting Tube Flexible Photos Catalog

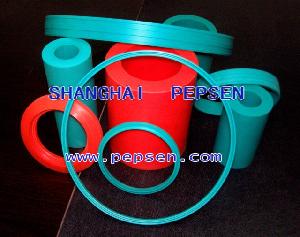

Casting PU Tube For Seal Machining, Polyurethane tube

General


MF-MPT-95 is a hydrolysis resistant PU

tube with a hardness of 95 +/-2 Shore A with very good physical properties. The resistance to most common hydraulic fluids and oil-water emulsions makes it a very universal material for seal applications.

Chemical resistance

Resistant to Sea Water, HFA, HFB fluids, mineral oils, vegetable oils, silicone oils, biodegradable oils, ozone, cold oxygen

Main application

Static and dynamic seals (standard and special), wipers, O-rings, back-up rings, flange seals, rotary seals, low friction and wear, high extrusion resistance, compatibility with water, excellent low temp characteristics.

Analysis and Evaluation

The properties relate to fundamental values for polyurethane products. Values mentioned above are corresponding to GB/T (stricter) or DIN standards and have been tested on standardized plates in the laboratory. All immersion tests are made under laboratory conditions.

Specification of polyurethane drum

Name Size(OD*ID*L) Hardness Color

33*150 95+/-2 Red/Green

38*13*150 95+/-2 Red/Green

48*22*150 95+/-2 Red/Green

58*27*150 95+/-2 Red/Green

65*35*150 95+/-2 Green

70*40*150 95+/-2 Green

68*37*150 95+/-2 Red/Green

78*47*150 95+/-2 Red/Green

80*50*150 95+/-2 Green

88*52*150 95+/-2 Red/Green

90*60*150 95+/-2 Green

98*62*150 95+/-2 Red/Green

105*75*150 95+/-2 Green

108*67*150 95+/-2 Red/Green

110*80*150 95+/-2 Green

118*77*150 95+/-2 Red/Green

122*95*150 95+/-2 Red/Green

128*87*150 95+/-2 Green

130*75*150 95+/-2 Red

130*95*150 95+/-2 Green

133*97*150 95+/-2 Green

143*107*150 95+/-2 Green

150*125*150 95+/-2 Green

153*117*150 95+/-2 Green

163*127*150 95+/-2 Green

170*132*150 95+/-2 Green

173*132*150 95+/-2 Green

188*142*150 95+/-2 Green

198*152*150 95+/-2 Green

208*180*150 95+/-2 Green

240*200*150 95+/-2 Green

320*280*150 95+/-2 Green

330*290*150 95+/-2 Green

340*305*150 95+/-2 Green

*Custom size, hardness and colors of PU tube are available

* Custom polyurethane drum is available 30 days after your requirements or drawings
