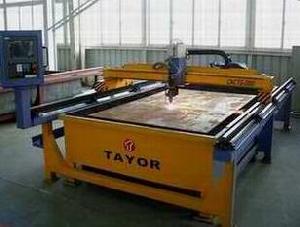

Cnc Table Cutting Machine

Posted at: Offers to Sell and Export | Posted on: Fri 17 Sep, 2010 7:43 am | Product Category: Cutting machines [1301]

cnc table cutting machine
Products Photos CatalogCnc Table Cutting Photos Catalog



CNCTG is the mode of the ordinary CNC Table type cutting machine. Its width is from 1.5m to 3m.

When


the width is less than 2.5m, the machine is signal side driven, and others are dual side. The table type cutting machine is compact and easy to move. It is suitable thin and middle plat cutting by plasma or flame.

Cutting Technical Data

Model CNCTG1500 CNCTG2000 CNCTG2000 CNCT2500

Machine dimension (mm) 1500x3000 2000x4000 2000x6000 2500x8000

Effective Cutting area (mm) 1000x2000 1500x3000 1500x5000 2000x7000

Cutting Thickness(mm) Flame:5-60mm Plasma:1-25mm

Cutting Speed (mm/min) 50-3800

Running speed (mm/min) 12000

Basic components

Cutting Mode Plasma or Flame

Drive Motor Number Servo motor, Single-side or Dual-side

Cutting Torch Number 1 set

Driving Motor Panasonic, Mitsubishi

NC Controller ADT-HC6500 SJTU-SK, Micro EDGE, EDGE pro

Plasma Power Thermadyne, Kjellberg, Hypertherm

Programming software FASTCAM

Gearbox Neugart

Other Data

Working temperature - 10C -45C

Humidity <90%, no condensation

Surroundings Ventilation, no big shake

Power voltage 3380V10% or up by users local condition

Operation language English or Chinese

Options

Option Item Powder Marking, integration dust extraction

Heating and cooling systems

Inkjet equipment
