Cnc Vacuum Suction Pods For Biesse Rover Cnc Routers
Posted at: Offers to Sell and Export | Posted on: Thursday 24 January 2019 7:48 am | Poster last visit: Wednesday 8 May 2019 |
Product Category: Main
» Industrial Manufacturing and Processing Machinery and Accessories
» Raw materials processing machinery
» Machinery for working wood and stone and ceramic and the like
» Combination woodworking machine
» Cnc Vacuum Suction Pods For Biesse Rover Cnc Routers
Product Description:

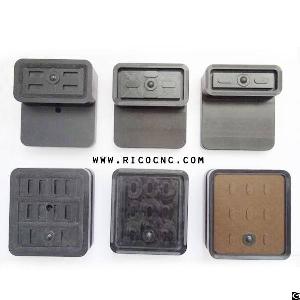

CNC Vacuum Suction Pods for Biesse Rover CNC Routers
These vacuum pods and cups are for Biesse CNC routers,
replacement pod for using with Biesse Rover, Biesse Point to Point machines.
With these cnc vacuum pods, you can do solid wood work or edge detail by raising the material off of the table. CNC flat table vacuum cup for your Biesse Rover grid can be used to do large parts or can be sectioned off with gasket to do smaller parts.
Biesse vacuum cups are available in three different heights: 29mm, 48mm and 74mm.
Full size vacuum pods for Biesse:
145 x 135 x 48mm
146*131*48
146*132*48
146*132*75
146*131*74
Half size (1/2 Size) Biesse flat table pods:
75 x 135 x 48mm
71*131*48
75*132*48
75*132*75
75*131*74
1/3 Size Biesse cnc vacuum pods:
50 x 135 x 48mm
55*131*48
55*132*48
55*132*75
55*131*74
These vacuum cups for biesse are with valve, locating ring and gasket, also have 48mm and 72mm height for choose.
The base bodies of the biesse vacuum cups are inserted into a holding fixture on a pod and rail table. The base body and holding fixture have a grating that is divided into 15° steps. Thus, it is possible to position the suction cup in different angles on the pod and rail table.
To minimize the setup time the vacuum cups are equipped with valves that only release the suction when the workpiece is placed. The vacuum cups on the remaining consoles, which are not used, simply stay on the machine. Unoccupied holding fixtures are covered with a dummy cap that helps avoiding pollution and shuts off the vacuum in this holding fixture. RicoCNC offers alternative vacuum cups. They are available in the same heights like the original vacuum cups. Thus, they can be combined at will.
RicoCNC is your best source for cnc spare parts, woodworking machine accessories, Schmalz cnc vacuum pods and cnc toolings. We supplied a range of cnc replacements for Anderson, Biesse, Busellato, Bulleri, CMS, CR Onsrud, Komo Machinery, IMA, Intermac, Felder, Laguna Tools, Morbidelli, Northwood, Weeke, SCM, Weinig, HolzHer, Flexicam, Multicam, Masterwood, etc.
Welcome your inquiry.
Company Contact:
Contact Name: Sherry Zhao
Company Name: Suzhou Ricocnc Machinery Co., Ltd
Email:
Tel: +8651268235075
Fax: +8651268235075
Street Address: No.60 Weixin Road,
Industrial Park Zone Suzhou, Jiangsu
215000 China
Other Contact Info:
What's App: +8615264185266
Skype: Sherryzhaosha
Website: https://www.cncsparetools.com
Member name: cncsparetools
Country: China
Member Since: 26 October 2018
Total Leads: 35 cncsparetools Import Export Business Leads
Business focus: Cnc Foam Cutting Router Bits, Cnc Tool Holder Forks, Iso30 Tool Gripper, Hsk63f Tool Clip, Wood Lathe Knife, Cnc Router Bits, Cnc Woodworking, Cnc Router
Chat:
