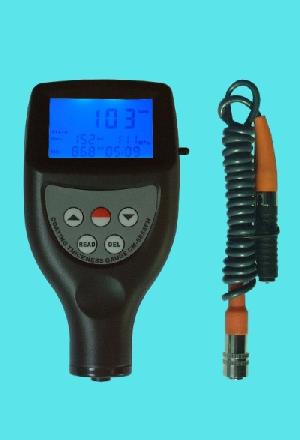

Coating Thickness Gauge Cm8856fn

Posted at: Offers to Sell and Export | Posted on: Tue 05 Jan, 2010 3:56 am |

coating gauge cm8856fn
Products Photos CatalogCoating Gauge Cm8856fn Photos Catalog



Model:CM8856

In seperate probe(s).


The F probes measure the thickness of non-magnetic materials

(e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum, chrome etc.) on magnetic materials (e.g. iron, nickel etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile, paper etc.

The N probes measure the thickness of non-magnetic coatings on non-magnetic metals. it is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

Two measurement mode: Single and Continuous

Wide measuring range and high resolution.

Metric/Imperial conversion.

Digital backlit display gives exact reading with no guessing or errors.

Can communicate with PC computer for statistics and printing by the optional cable.

Can store 99 groups of measurements.

2.specifications

Display: 4 digits LCD, backlit

Range: 0~1250 μm/0~50mil (other ranges can be specified )

Min.radius workpiece: F: Convex 1.5mm/Concave 25mm

N: Convex 3mm/ Concave 50mm

Min. measuring area: 6mm

Min.Sample thickness : 0.3mm

Resolution: 0.1 μm (0~99.9μm); 1 μm (over 100μm)

Accuracy: ±1~3%n or 2.5 μm or 0.1mil (Whichever is the greater)

Bttery Indicator: Low batter indicator.

PC interface: with RS-232C interface

Power supply: 2x1.5 AAA(UM-4) battery

Operating condition: Temp. 0~50℃ .

Humidity <95% .

Size: 126x65x35 mm; 5.0x2.6x1.6 inch

Weight: about 81g(not including batteries)
