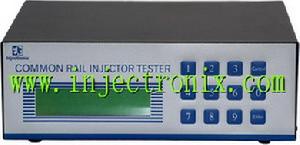

Common Rail Tester

Posted at: Offers to Sell and Export | Posted on: Thu 30 Oct, 2008 9:25 am |

rail tester
Products Photos CatalogRail Tester Photos Catalog



Common Rail System Tester simulates an engine ECU to drive a pump solenoid, such as Bosch CP1/CP2/CP3,



Delphi CRSP and Denso HP2/HP3/U2, plus solenoids of six CR injectors. A standard high pressure pump test bench with a CR system tester CRS will fulfill most tasks for repairing a CR system and the components, such as injection quantities, injector fuel return, nozzle injection spray atomization, pump condition and fuel rail pressure control.

Design Features

 Combine two independent modules for pump and injector control

 Pump driving signal - Adjustable duty cycle,while monitoring fuel rail pressure

 Injector driving signal - Adjustable frequency and pulse width

 Modulated driving signal to ensure the safety of the solenoids of the injectors

 Software based over-pressure protection

 Short circuit protection for solenoid driving signals

 Rich accessories, ready to test Bosch, Denso and Delphi injectors and pumps

 Individual model CRI-1000 for repairing single solenoid CR injector

 Individual model for CRI-3000 for repairing single piezo CR injector by Siemens
