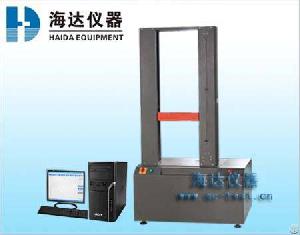

Computer Servo Control Tensile Strength Test Machine
Posted at: Offers to Sell and Export | Posted on: Tuesday 10 September 2013 8:26 am | Poster last visit: Tuesday 10 September 2013 |
Product Category: Main
» Laboratory and Measuring and Observing and Testing Equipment
» Measuring and observing and testing instruments
» Metals and metallurgy and structural materials testing instruments
» Tensile strength tester
» Computer Servo Control Tensile Strength Test Machine
Product Description:
1.Product Description
This material testing machine is used to test the physical properties of the raw
material, finished products, semi-finished products, This machine can do various of test.suc as: the stretching resistance test, the compressive resistance test, the bending resistance test to get the result with elongation, Internal stress, strain and testing data. The tensile strength tester can do many different of test matched with different fixtures, accessories, two extending, the pressure test railroad cars/containers, bending test, obtain elongation, extension, stress, strain and test results and test data. Tension tester can match different fixture, accessories, two point stretcher and load cell, It can be connected by computer to operate the machine.
This tensile strength tester can analyze all the test results, such as: elongation, stress, strain and damage value, average, etc. The Tensile strength tester can provide the all testing process according to the type of the sample or the different demands. It can analysis the physical properties of the samples, such as the compressive strength, flexural, fatigue, peel, strength, bending, and so on This machine has other accessories, such as: air compressor sample cutter, the cutting machine, the Hot pressing molding machine to make the standard specimen to get more precision test data.
The Computer servo tensile (compression) strength tester can provide the test space with two group of capacity. The operator has more usage scope, Especially, The testing power gap of the raw material and finished product is larger, It is more suitable to use this Landing style of machine. This machine is wildly used in those fields, such as: steel wire, small screws, fabric and so on. The maximum force: 50KN, with two testing space, installed with two load cell with different capacity. It can be used to do different material Analysis and test, such as: Spring industry, steel wire industry, rubber and plastic industry etc.
2. Features
1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
2. Using a single-screen operation; do not need to switch the screen;
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface
can be switched easily
4. The pattern of Test reports can be selfdesignated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. High quality, accurate and reliable models with reasonable price.
Design Standard
Gb/t 16491、gb/t 1040、gb/t 8808、gb/t 13022、gb/t 2790、gb/t 2791、gb/t 2792、gb/t 16825、gb/t 17200、gb/t 3923.1、gb/t 528、gb/t 2611、gb/t 6344、gb/t 20310、gb/t 3690、gb/t 4944、gb/t 3686、gb/t 529、gb/t 6344、gb/t 10654、hg/t 2580、jc/t 777、qb/t 2171、hg/t 2538、cns 11888、jis k6854、pstc-7、iso 37、as 1180.2、bs en 1979、bs en iso 1421、bs en iso 1798、bs en iso 9163、din en iso 1798、gost 18299、din 53357、iso 2285、iso 34-1、iso 34-2、bs 903、bs 5131、din en 12803、din en 12995、din53507-a、din53339、astm d3574、astm d6644、astm d5035、astm d2061、astm d1445、astm d2290、astm d412、astm d3759/d3759m
3.Main Parameter
Capacity：3T-5T（Optional）
Units：g，kg, N, LB
Load Resolution：1/100, 000
Load Accuracy：≤0.5%
Maximum stroke: 1000mm (excluding fixture)
Test Speed：0.1～300 mm/min （Optional）
Power System：Japan Panasonic AC servo motor + Drive
Drive Type：High precision ball screw
Display device：Full computer control（which can display and print the number of trials, test the value, the maximum value and fracture value etc.
Outside Dimension：(L×W×H) 980×510×15200mm
Weight：230kg
Power：1∮,, 220V, 10A
Accessory：One set of tension fixture
4.Theory
Place the sample between the upper and lower fixture, use a given speed
to pull the upper fixture upward, and the upper load cell with sensor to check tensile strength and convert the strength into voltage sign and output to the display screen.And the strength value will be displayed automatically on the computer.
6.Software
The TM2101 measurement and control system is designed purposely for microcomputer controlled electronic universal testing machine, microcomputer controlled universal hydraulic testing machine and microcomputer controlled compress testing machine, used for tension, compress, bend, shear, tearing and peel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force, maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multisensor support, image interface, flexible data process and powerful system function.
