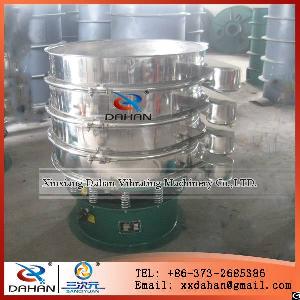

Rotary vibrating sieve is a kind of high precision fine powder screening machine, works by the upright
motor as vibration source, installed on both ends of the motor on the eccentric hammer, the motor rotation movement into horizontal vertical slope of three dimensional movement, then pass the movement to the screen surface at the ends of the regulation on the phase Angle, can change the course of movement on the surface of the material in the screen, vibration due to its operation principle, many enterprises are also called the three dimensional vibrating screen filter, according to shape structure is part of the customers' call for circular screen
Condition:New Type:Circular Application:ceramics industry Place of Origin:Henan, China (Mainland)
Brand Name:Dahan Model Number: DH-600-3s Voltage:380v Power(W):0.25kw
Dimension(L*W*H): 800*800*1030 Weight:107kgs Certification:ISO9001:2008 Warranty:12 months
After-sales Service Provided:Engineers available to service machinery overseas Layer:3
Material:contact with 304 stainless steel Customization:available Cleaning system:bouncing ball
Test:we offer Surface:Mirror-polished Function:grading, screening, filter and removing impurities
Packaging & Delivery
Packaging Details：Can be packed according to the size of the machine.Our standard exporting packing is Fumigation-free wooden case, and 1 set/case.If you have sepcial requipment, please just inform us.
Delivery Time：Shipped in 7 days after payment
Rotary vibrating sieve product feature
♦ High efficiency, design is exquisite and durable, any powder mucoid screening.
♦ Easy to change screen, to operate and to clean.
♦ Mesh is not blocked, Powder is not float in the sky, Mesh to 500 mesh or 0.028 mm.
♦ Impurity, coarse material automatic discharge;Can connect operation.
♦ Unique network frame design, screen mesh use time long, fast to replace the network only for 3 to 5 minutes.
♦ Small volume, saving space, easy to move.
♦ Screen up to five layers.
