Cvd Diamond

Posted at: Offers to Sell and Export | Posted on: Wed 14 Aug, 2019 2:33 am | Product Category: Industrial diamonds [32]

cvd diamond
Products Photos CatalogCvd Diamond Photos Catalog



The high hardness and high wear resistance of diamond make diamond films an excellent tool material.



One of the important properties of CVD diamond is its extremely high thermal conductivity. At room temperature, the thermal conductivity of diamond is five times that of copper. At the same time, it is an excellent insulating material. Therefore, diamond films can be used to make high-power optoelectronic components of the heat sink material. Application of CVD diamond optical properties. Diamonds have very high spectral passivities over a long wavelength range from ultraviolet to far infrared. In addition to the outstanding mechanical and thermal properties of Diamond, Diamond Film is an excellent optical window material that can be used in harsh environments.

In other applications, acoustic waves produce high-quality diamond thin-film acoustic devices at extremely high propagation speeds in diamonds, using chemical stability of diamonds to make various types of biosensor devices.

E-Grind supplies various shaped CVD diamond. CVD has very similar features as diamond.

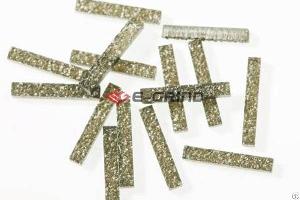

1. Polycrystalline CVD diamond

Our Polycrystalline CVD diamond is manufactured by DC Arc Plasma Chemical Vapor Deposition (CVD) method. They can be made into dressing tool blanks, wire drawing die blanks, laser windows, domes and thermal mounts etc in mechanical, thermal management, optical windows industries. E-Grind CVD provides long using life and high working efficiency.

1.1) For Dressing tool

CVD diamond can be used for Dressing application in grinding process. It is suitable for the single point, multipoint, blade, rotary, roller etc It has superior thermal characteristics and very wearing resistant.

1.2)CVD diamond for Cutting tool application

CVD diamond can be used in mechanical working for non-ferrous materials such as ceramics, high silicon-filled aluminum, abrasive composites, graphite etc. With high thermal conductivity, low friction index, high anti-wearing features, it provides premium performance as cutting tool application.

1.3)CVD diamond for thermal management

CVD diamond has unique characteristics of thermal conductivity, which is five times higher than that of copper. We supply thermal management grade of CVD, which with thermal conductivity between 1000-2000 W/mK, Application: laser diodes, high-power integrated circuits, a heat spreader for satellite and GaN on Diamond.

Specifications

Density: 3.5g/cm3

Young's modulus: 1000-1100Gpa

Growth side surface finish: <100 nm Ra

Nucleation side surface finish: <30 nm Ra
