Diamond Polishing Film

Posted at: Offers to Sell and Export | Posted on: Mon 17 May, 2010 6:40 am |

diamond polishing film
Products Photos CatalogDiamond Polishing Film Photos Catalog

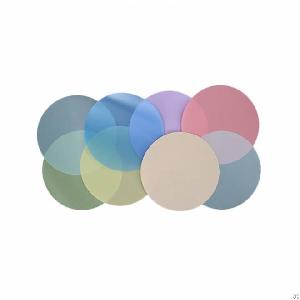

Diamond Polishing Film

GRISH lapping film is coated with precisely graded minerals (such as diamond,


aluminum oxide, silicon carbide, silicon oxide, cerium oxide and so on) on the high strength polyester backing to provide a uniform, consistent finish. Available in 0.01-45 μm grades, with or without PSA (Pressure Sensitive Adhesive) backing.

Specification

Type D

(Diamond) SC

(Silicon Carbide) AO

(Aluminum Oxide) CO

(Cerium Oxide) SO

(Silicon Oxide)

Grit Size /

µm 30 Green Light Green Green

20 White

16 White

15 Yellow-

green Tawny Light Green Brown

12 Yellow

9 Blue Gray-green Blue

6 Yellow

5 Gray-green White

3 Pink Tan Pink White

2 Gray-green Bright Green

1 Off-white Lavender Gray-green Blue

0.5 Off-white Brown-

yellow White Dark Red Off-white

0.3 White Dark Red Off-white

0.2 Grey

0.1 Light Brown White

0.02 Transparent

0.01 Transparent

Recommended Polishing Medium Water/Oil Water/Oil Water/Oil SOQ-12D Water

Standard size Disk :Φ70mm、Φ110mm、Φ127mm(5inch)、Φ203mm(8inch)

Sheet :114mm*114mm、152mm*152mm(6inch)、228mm*228mm(9inch)

Note: Other film sizes are available upon request.

Feature

·High removal rate and superior surface finishing

·Consistent finishing performance

·High durability and cost reduction

·Available for dry polishing and wet polishing

Application Type Main application

D ·Used to radius ferrule connectors or refine the finish in preparation for the final polish.

·Polishing for magnetic heads and hard disks

·Lapping and polishing for optical glasses, optical crystal, LED

·Lapping and polishing for Semiconductor wafer (gallium arsenide, indium phosphide etc.)

SC ·Epoxy and glass removal

·Lapping and polishing for plastic ferrules

·Fine finishing and polishing for magnetic heads

AO ·Polishing for fiber optical connectors

·Polishing for silicon wafer used in Solar cells

·Polishing for hard disks

·Polishing for ITO

·Lapping and polishing for optical crystal

CO ·The final polishing for fiber optical connectors

·Polishing for optical devices

SO ·The final super-precise polishing of optical fiber connector
