Digital Video Audio Data Ip E1 Optical Transceiver Mux

Posted at: Offers to Sell and Export | Posted on: Thu 03 Dec, 2009 8:18 am |

digital video audio ip e1 optical transceiver mux
Products Photos CatalogDigital Video Audio Photos Catalog

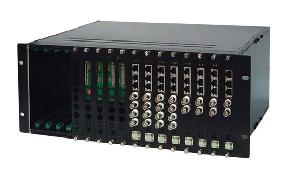

Fibridge FBVAD1000 video/Audio/data transceiver series utilizes state-of-the-art 8/10bit digital encoding



and decoding for high-quality video transmission that exceeds the requirements of EIA RS-250C for Medium-Haul Video Transmission.

Feature

Support Console, WEB and SNMP format management

Monitor the module information including: Model, Version, Product description, Slot index, Device base information, Local Video Control, Local and Remote Video transmitting Status, Ethernet Status.

Support 1/2/4/8 channels Video plus E1, Ethernet, Audio, Data, concentrative management

Specification

Power:

0.5a12vdc

Indicators:

Power, Run, Video Signal, data

Video:

Channel: 1-8Bi-dir Channel

Format: PAL/NTSC/SECAM

Video Signal:1Vp-p, 75

Digitization: 8/10bits

Bandwidth: 8MHz

DG: <1%

DP:<1o

SNR:>65dB

Connectors: BNC

Audio

Channel: 1-8 stereo audio

Line Impedance: unbalanced, 600Ohms

Digitization: 16bit48k

Bandwidth: 10Hz ~20KHz

SNR:>80dB

Connector: RJ-45

Data:

Channel: 1-8, Bi-dir

Data Rate: 0~250Kbps

Selectable RS232/RS422/RS485

Connector: RJ-45



Company Contact:

bjfibridge photo
Contact Name: Siya Liu
Company Name: Beijing Fibridge Co., Ltd
Email: Email
Tel: +86 10 58858988
Fax: +86 10 58858520
Street Address: A402, Power Creative
Bldg, No. 1 Shangdi East Rd, Haidian
District, Beijing, 100085 China
Website: http://www.fibridge.com
Member name: bjfibridge
Country: China-CN China
Member Since: 01 September 2009
Total Leads: 57 bjfibridge Import Export Business Leads
Business focus: Intelligent Video Analysis, Ip Video Surveillance, Video Optical Transmitter, Media Converter, Protocol Converter, Pdh Multiplexer, 155m Sdh, Mstp, Msap
