Din844 End Mills With Straight Shank, End Mills, Cutting Tool Part, Solid Carbide, With Tialn Coated
Posted at: Offers to Sell and Export
Posted on: Fri 26 Jun, 2009 5:45 am

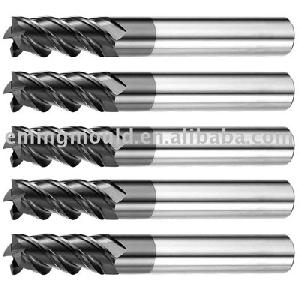

DIN844 End mills with straight shank, end mills, cutting tool part, solid carbide, with TiALN coated, DIN844 End mills with straight shank
Designed for general purpose work including cam milling, die sinking and slot milling
Excellent for use in a wide range of ferrous and non-ferrous materials
Excellent for use in finishing operations
Multi-flute design allows for higher feed rates
Helix angle30° 2Flutes, 3Flutes, 4Flutes are mainly used in the processing ordinary materials and middle-high hardness steels
Helix angle45° 2Flutes, 3Flutes, 4Flutes are applicable to process middle hardness steels, the stainless steel, Tialloy, Nialloy .Its cutting efficiency is doubled.
Material:HSS, Carbide
flute Dia(mm) shank Dia(mm) thread length(mm) Total length(mm)
2 6 7 51
3 6 8 52
4 6 11 55
5 6 13 57
6 6 13 57
7 10 16 66
8 10 19 69
9 10 19 69
10 10 22 72
11 12 22 79
12 12 26 83
13 12 26 83
14 12 26 83
15 12 26 83
16 16 32 92
17 16 32 92
18 16 32 92
19 16 32 92
20 20 38 104
21 20 38 104
22 20 38 104
23 20 38 104
24 25 45 121
25 25 45 121
|
|
|
|
|
