Mud cleaning system including shale shaker, mud conditioner, centrifuge decanter and so on. For oil and
gas exploration, drilling mud cleaning is 5 phases. Fluids flows via shale shaker, degasser, cones, centrifuge. Others are auxiliary equipment, mud agitator, mud guns, mixing hopper pump, tanks and so on

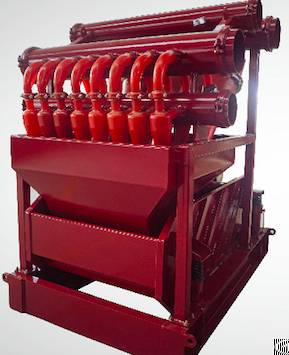

Mud conditioner is the mud cleaner indeed. We call it conditioner since it can help user get useful mud with good condition after processed by cones. Almost particles larger than 15 microns will be separated out there
Mud Cleaner Technical Parameters
Model Hunter 50 Hunter 90 Hunter 120 Hunter 200 Hunter 240 Hunter 320
Capacity 50m³/h 90m³/h 120m³/h 200m³/h 240m³/h 320m³/h
Desander Size 8 inch 10 inch
Desander Qty 1 Pcs 2 Pcs 3 Pcs
Desilter Size 4 inch
Desilter Qty 4 Pcs 6 Pcs 8 Pcs 10 Pcs 12 Pcs 16 Pcs
Work Pressure 0.25~0.45 MPa
Separate Point 15μm～74μm
Bottom Shaker Model Hunter Mini Hunter D3 Hunter MG4
Vibration Mode Linear Motion
Vibrator Motor 2×0.75Kw 2×1.72Kw 2×1.72Kw
G Force ≤7.5G
Deck Angle 2° -1 - +5°
Screen Area 1.35㎡ 2.27㎡ 2.73㎡
Screen Panel 2 Pcs 3 Pcs 4 Pcs
Dimension (mm) 1650×1250×1750 1650×1250×1900 1650×1250×1900 2455×1850×2250 2455×1850×2250 2850×1800×2250
Weight(Kg) 1100 1600 1650 2100 2150 2350
Remark 4" cone =12~15m³/h, 8"cone=30~35m³/h, 10"cone=90~120m³/h. It can be configured according to clients' demand
Features Of AIPU Mud Cleaner
Shale Shaker & Desander & Desilter 3 in one mud cleaner for 2nd and 3rd phase cleaning for small footprint.
Both desander & desilter cone material is polyurethane (PU) for hard-wearing.
Italy brand motor, standard brand is OLI, Martin or Itvibras motor as option
Max G force reaches to 7.5G, G force adjustable depending on drilling mud conditions
Heat treatment of shaker deck for steady working, Stainless Material for shaker deck bottom
Heavy anticorrosive painting on shaker service, 3 layer painting.
Wedge type screen and hook strip screen both available to suit client requirement.
Mechanical deck angle adjustment for steady and reliable performance.
Standard options: IECEX, ATEX, UL, DGMS, CE, Gost.
Top brand of electrical control panel, Siemens/Scheneider brand main components
Composite material screen available for longer service life.
Shaker screen is sent to US for API RP 13C compliance test. The only one supplier in China with API RP 13C compliance test report.
