E1 To V. 35 Protocol Converter

Posted at: Offers to Sell and Export | Posted on: Sat 15 Mar, 2008 4:22 am |
e1 v 35 protocol converter
Products Photos CatalogProtocol Converter Photos Catalog

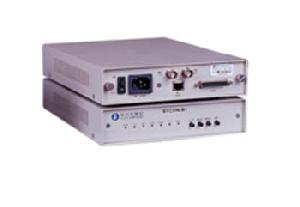

E1-V. 35 Protocol Converter can realize the bi-directional data transmission between E1 and V. 35. This

equipment is widely used in connection between WAN and LAN, image monitoring and realize the conversion between V. 35 interfaces.

Product Feature

1. Adopts large-scale integrate chip, brief circuit, low power consumption and high reliability structure

2. Offers one channel E1 port and Automatically adapt to 75ohm & 120ohm Impedance

3. V. 35 port rate is nx64Bbit / s (n=1~32)

4. Work schedule can be set optionally

5. Master clock, incept resume clock optional

6. Supports DTE or DCE working manner

7. Provides powerful network management functions

8. Possess complete alarm and status indication function

9. Adopts manifold power supply: -48V DC or 220V AC

Technologies reference

10. Interface type: E1, V. 35 date port

11. E1 rate: 2048KBIT / S + -50ppm

12. V. 35 rate: 2048KBIT / S

13. E1 impedance: 75ohm (unbalance) / 120ohm (balance)

14. Clock type: master clock, slave clock or outside clock optional

15. Working manner: DTE or DCE optional

16. Power

Voltage: 180V~240V AC, -36V~-72V DC

Power consumption: <5W

17. Dimension: 200mmx140mmx35mm

18. Indicator:

PWR: Power Indicator

LOS: E1 Signal Indicator

RMA: Opposite End Alarm Indicator

TD: V. 35 Send Date Indicator

RD: V. 35 Receive Date Indicator

DCE: DEC Working Manner Indicator

TS16: Time Slot Indicator
