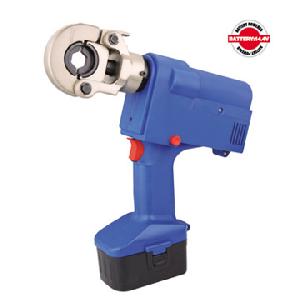

Battery Powered Crimping Tool EHT-300 (Battery Powered Crimping Tool 16-300mm2 )
interchangeable dies, narrow crimping.
Crimping head rotates 360°, flip top style.
Two stage hydraulics.
Quick motor stop.
Motor stop and automatic retraction when crimp is complete.
Manual retraction in case of need.
Electronic control and monitoring of crimping operation.
Light diode for battery charge and maintenance control.
High-performance 3.0Ah NIMH battery.
Cu compression cable lugs and compression joints (16-300mm2 )
Al compression cable lugs and compression joints (10-240mm2 )
Crimping Force 60KN
Crimps per charge 160crimps (Cu cable 150mm2 )
Crimping cycle 3s up to 6s (depend on the size)
Weight 5.8kgs (w/o charger)
Battery voltage 14.4V
Battery capacity 3.0Ah
Charging time 2-2.5h
Package Steel case
Weight of case 5Kgs
Crimping Dies. 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2
O-Ring for oil vat 1set
O-Ring for safety valve 1set
