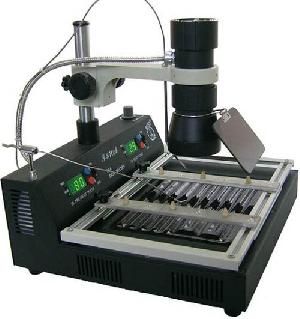

Elecctronic Tools Bga Irda Welder T870a

Posted at: Offers to Sell and Export | Posted on: Sat 19 Jul, 2008 5:20 am |

elecctronic tools bga irda welder t870a
Products Photos CatalogElecctronic Tools Bga Photos Catalog



Features

1、Adopt infrared weld technology which independent exploration.

2、Use infrared


heat,easy to cut through,heat proportion piercing tradition weld machine with sirocco.

3、Easily operate.Just need one day training.Can operation this machine.

4、Don't need weld tools.This machine can weld all the component of 35-50cm.

5、This machine has 800W heating system.widely to240x180mm.

6、Infrared heating don't have sirocco flow. Don't impact perimeter small component.Can suitable for all of the component,especially Micro BGA component.

7、Definitely can satisfy the computer, the notebook, the electricity swims and so on the BGA sealing off/repairs to request;Specially especially suits to the computer north and south bridge。

Technic parameter

Work floor size

360X240mm

Rated voltage and frequency

AC220-230v 60/50Hz

Complete machine power

1000W

Infra-red lamp body power

150W

Preheating chassis power

800W

Infra-red lamp body heating size

Φ70mm(50x50mm)

Preheating chassis preheating size

240x180mm

Infra-red lamp body temperature adjustable

200℃-350℃

Preheating chassis temperature adjustable

60℃-200℃

Instrument inventory

Welding table main body

1

Infra-red lamp body

1

Temperature sensor

1

Board support of the circuit

1

Power line

1

user's manual(Compact disc)

1
