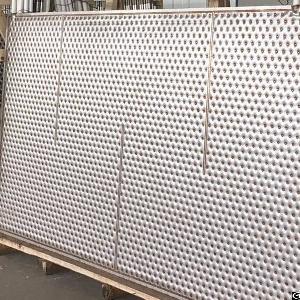

Embossed Design Stainless Plate For Heat Exchange Dimple Plate
Posted at: Offers to Sell and Export | Posted on: Wednesday 18 October 2017 8:32 am | Poster last visit: Tuesday 6 March 2018 |
Product Category: Main
» Distribution and Conditioning Systems and Equipment and Components
» Heating and ventilation and air circulation
» Heating equipment and parts and accessories
» Plate heat exchanger
» Embossed Design Stainless Plate For Heat Exchange Dimple Plate
Product Description:
Thermally efficient types of Pillow Plate
1. Immersion heating and cooling
2. Can heating, cooling,
or heat preservation outside the container
3. Built-in for heating or cooling, such as internal heated fluidized bed
4. Special heat exchanger
5. Evaporator, Condenser
6. Clamp-on heating, cooling, and temperature maintenance
7. Polymerizer cooling, heating baffles
8. Ice storage
9. Plate heat recovery group
10. Drum Insulation
11. Equipment trough jacket
12. Conical head jacket
13. Dyeing heater
14. Flue gas heat recovery plate group
15. Falling film cold water ( brine ) Unit
16. Built concentrator or reboiler
17. Large built-in bezel set for cooling vegetable oil
Features
1. Available in most materials, like stainless steel 304, 316L, 2205 and titanium
2. High operating pressures
3. High operating temperatures
4. No gaskets required
5. Corrosion resistant
6. Easily formed to fit the shape you need
7. Cutouts are easily provided
8. Thermally efficient types of heat transfer
9. Immersion heating and cooling.
10. Clamp-on heating, cooling, and temperature maintenance
11. Integral jacketing for heating and cooling
12. Custom heat exchanger design
13. Evaporators
14. Condensers
15. Easily cleanable, attractive finishes available
16. Low pressure drop design
17. Pharmaceutical and food-grade designs available
18. More active heat transfer surface available
The type of Pillow Plate
Double Embossed
Double-sided pressure molding, usually used for most applications
Suitable for heating and cooling process, generally, the thickness on both sides plate are the same.
Double Embossed Pillow Double embossed pillow is ideally suited as a heat exchanger for liquids or powders and granules. Due to the laser welding technique, a pillow plate having a relatively low wall thickness can withstand (very high) high working pressures. The high degree of design flexibility also offers many opportunities to achieve the best possible product with the best possible heat transfer. Extremely versatile applications Double embossed pillow plates are used, for example, as cooling technology and as heat exchangers in the food industry. Double embossed pillow blocks are deployed for complete installation, such as drop film water coolers, immersion coolers or ice banks. Double embossed foam board for heating and cooling, the use of a wide range of coolants and heating agents, such as water, steam, ethylene glycol, freon, NH3, CO2 and so on.
Single Embossed
Only single-sided pressure molding, usually used for single-sided plane occasions, such as the tank wall and transport bed, generally, the thickness on both sides plate are different.
The materials can be stainless steel, hastelloy and carbon steel and so on . The different material and thickness can meet different working pressure.
Pillow Plate is a simple, effective and economical solutions to maintain the temperature. Double embossed heat exchanger plate is easy to install on the existing storage tank and equipment, is a economy and effective method to maintaining the temperature.
Features of single embossed
1. Easy to install in the outer wall of the storage tank and equipment
2. Can meet the special shape and size design
3. The manufacturing can meet the existing import and export pipelines, control systems and support structure
4. The material stainless steel and carbon steel are available
5. The inherent advantages of the double embossed is turbulence, this design ensure the low flow rate can be achieve high turbulence, the heat transfer efficiency have greatly improved
6. Experiments show that the double embossed heat transfer plate higher 15% heat transfer performance than the single embossed heat transfer plate
Most of the heat transfer medium can be used for Pillow Plate
1. Steam
2. Hot water
3. Cooling water
4. Conduction oil
5. Heat transfer
Company Contact:
Contact Name: Kiki Qiu
Company Name: Sehenstar Energy Technology Co., Ltd.
Email:
Tel: 0086-512-69572850
Fax: 0086-512-69572851
Street Address: C605, Xi'an
Jiao Tong University Science Park,
Xiangcheng District
Suzhou, Jiangsu 215000
China
Member name: sehenstar
Country:
China
Member Since: 29 June 2017
Total Leads: 26 sehenstar Import Export Business Leads
Business focus: Bulk Solid Heat Exchanger, Ice Bank, Pillow Plate, Falling Film Water Chiller, Evaporator, Condenser, Air Cooler, Wastewater Heat Recovery
