Ethernet To 4 / 8 / 16e1 Protocol Interface Converter

Posted at: Offers to Sell and Export | Posted on: Fri 25 Sep, 2009 3:37 am |

ethernet 4 8 16e1 protocol interface converter
Products Photos CatalogEthernet 16e1 Protocol Photos Catalog

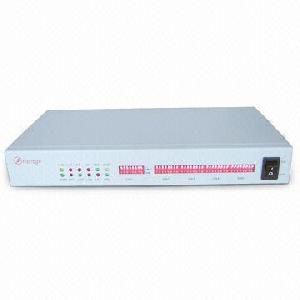

Fibridge 10/100M Ethernet to 1/4/8/16E1 Protocol Interface Converter

SNMP/WEB/Console Management;


E1 transparent 75/120ohm optional; Ethernet support bandwidth control and QoS service

1.Overview

FBPC100 Series protocol converter is a high performance, remote, self-learning Ethernet Bridge. Its compact size and low cost make it ideal for cost-sensitive bridging applications or as a LAN extender over bit stream type infrastructures. The main E1 link may be clocked from the recovered receive clock or from an internal oscillator. This converter allows transmitting and receiving VLAN data packets. Standalone and Rack mount module are both available.

2.Features

Support transparent E1 channel

Provide 10/100M electrical Ethernet port

Support loop test, CRC selection, local/remote indicators etc.

Auto-detect the valid E1 channels and auto-balance the data flow among the valid E1 channels

MDI/MDI-X auto-crossover, 10/100M auto-negotiation and speed limitation

AC220V and DC-48V power supply redundant

3.Management

Provide console management

Upgraded to SNMP/WEB management

View and configure the E1 and Ethernet ports status, such as E1 loop back, Ethernet ports rate limitation, and etc.

Provide environment parameter monitoring, including power supply status and device operation temperature

Provide user management to ensure the device operation security

4Specifications

4.1Power

AC Input: 100~240V

DC Input: -48V

Power Consumption:

15w

4.2E1 interface

Data rate: 2.048Mbps

Code type: HDB3

Compliant with G.704, G.823

75/120 optional

BNC (75ohm)/RJ45 (120ohm)

Transparent E1 mode

Qty: 4/8/16

4.3Ethernet Interface

Standard: IEEE 802.3, 802.3u.

10/100M electrical port, MDI/MDIX auto negotiation

Half/ full duplex

RJ45 connector

Qty: 1/4

6.Order Information

P/N Description

F5-4513A 10/100M Ethernet over 4E1 converter, Standalone, AC220V power supply

F5-4513D 10/100M Ethernet over 4E1 converter, Standalone, DC-48V power supply
