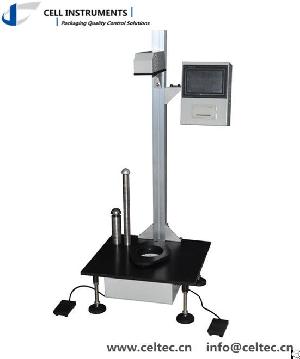

Falling Dart Impact Tester For Film
Posted at: Offers to Sell and Export | Posted on: Saturday 27 June 2015 3:41 am | Poster last visit: Tuesday 21 July 2015 |
Product Category: Main
» Laboratory and Measuring and Observing and Testing Equipment
» Measuring and observing and testing instruments
» Metals and metallurgy and structural materials testing instruments
» Impact testers
» Falling Dart Impact Tester For Film
Product Description:
Falling dart impact tester for film can test the resistance performance of plastic films, sheets, and
composite films, foils, paper, with less than 1mm thickness. Impact test can indicate the material ability to resist external destruction.
Technical Features
1. PLC control and touch screen operation
2. Two tests methods of A and B
3. Test results multi-units display
4. Electromagnetic suspension and automatic release of the falling dart from fixed position
5. Sample pneumatic clamping
6. Manual and foot switch
7. Built-in observation light for sample status easy judgment
8. Micro-printer for data export
9. Professional software(optional)
Technical Data
Test Method Method A or Method B(optional)
Test Range Method A: 50~2000g Method B: 300~2000g
Dart Diameter Method A: 38±1mm Method B: 50±1mm
Impact Height 660mm/1500mm
Accuracy 0.1g (0.1J)
Specimen Clamp Pneumatic Clamp
Gas Supply 0.6 MPa
Gas Port Size Φ8 mm PU Tubing
Specimen Size > 150 mm x 150 mm
Power Supply AC 220V 50Hz
Net Weight 70 kg
Instrument Dimension Method A: 500 mm (L) x 450 mm (W) x 1200 mm (H)
Method B: 500 mm (L) x 450 mm (W) x 2200 mm (H)
Standards
Astm d1709, iso 7765-1-1988, jis k7124-1, gb/t 9639.1-2008
Company Contact:
Contact Name: Owen
Company Name: Cell Instruments Co., Ltd.
Email:
Tel: +86-531-88977152
Fax: +86-531-88977152
Street Address: Xiying
Jinan, Shandong 250000
China
Website: https://www.celtec.cn
Member name: celtec
Country: China
Member Since: 09 October 2014
Total Leads: 33 celtec Import Export Business Leads
Business focus: Testing Instruments, Testing Equipments, Packaging Test, Packaging Testers, Food Package Tester, Leak Tester, Heat Seal Tester, Seal Strength Tester
