Four-head Corner Combining Machine

Posted at: Offers to Sell and Export | Posted on: Sun 11 Oct, 2009 2:08 am |

four head corner combining machine
Products Photos CatalogFour Head Corner Photos Catalog

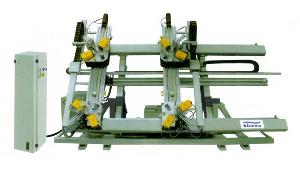

LJJZ4-CNC-10018003000 Four-head Corner Combining Machine

Clicks: 159


Brief Introduction:

Used

for corner punching and riveting combination of aluminum win-door four corners connecting at one time are available.

Clamping device can move front and back automatically, easily operation.

Wide profile processing range due to convenient corner combining cylinder setting.

Head feeding adopts high helical pitch ball screw-lead controlling, high accuracy.

Imported CNC system, convenient operation.

Technical Parameter:

Input voltage 380V 50Hz

Input power 7.5kw

Air pressure 0.5~0.8MPa

Input power 3kw

Air consumption 0.45 L/Time

Hydraulic pressure 15 Mpa

Oil capacity 40L

Max. Profile width 100mm

Max. dimension 1800*3000mm

Min. dimension 560*560mm

Overall dimension 4700*2000*2600mm
