G10-fr4 Board, 3240 Epoxy Glass Sheet

Posted at: Offers to Sell and Export | Posted on: Tue 18 Aug, 2009 8:46 am |

g10 fr4 board 3240 epoxy glass sheet
Products Photos CatalogG10 Fr4 Board 3240 Photos Catalog

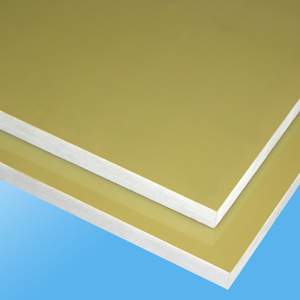

3240 epoxy glass board.

G10-FR4 Board


Thickness: .3-100mm

Size: 1020 x 1220mm, 1980×980mm, 1020×2040mm

garolite

- g10/fr4 sheet

G10-FR4 (FR4) is a fire rated electrical-grade, dielectric fiberglass laminate epoxy resin system combined with a glass fabric substrate. The abbreviation "FR4" means:  F (for flame) and R (for retardancies) and the 4 is a # 4 epoxy. FR4 grades offer excellent chemical resistance, flame ratings (UL94-VO) and electrical properties under dry and humid conditions.  FR4 also features high flexural, impact, superior mechanical strength and bond strength at temperatures up to 130°C. G10-FR4 is suitable for structural, electronic, pc boards and electrical applications.

FR-4 is a versatile material due to several mechanical and electrical properties; it is less reactive at high frequencies, absorbs less moisture, has greater strength and stiffness, and is highly flame resistant.  G10/FR4 material conforms to the requirements of military specification Mil P 13949 Type F and and is rated UL 94V-0.  A few other applications:  Communications, Computer, Computer Peripherals, Instrumentation, Industrial Control Systems and OEM Electronics.

G11-FR5- is an electrical-grade, dielectric epoxy fiberglass laminate epoxy resin system combined with a glass fabric substrate. The G11 material is Stronger and has a higher temperature rating than the FR4 material. the G-11 certifies to Mil-I-24768/3 GEB; G11 certifies to GEB-F.

G11 is a versatile material due to several mechanical and electrical properties; it is less reactive at high frequencies, absorbs less moisture, has greater strength and stiffness, and is highly flame resistant.

G-11 material is used in applications where a good dielectric strength is needed plus the added value of the Fire retardency.  Used in Power Plants, Buss Bars, Electrical generation units.  G11 is available in sheets.  MAX OPERATING TEMPERATURE 345° F.



Company Contact:

No member photo
Contact Name: Ray
Company Name: Xiamen Hongcheng Insulation Materials Co., Ltd
Email: Email
Tel: 865925660130 or 865925135217
Fax: 865925135227
Street Address: 5/F, No.2 Bldg,
Haotou Warehouse S., Dongdu, Huli District,
Xiamen, China 361012
Website: http://www.hc-materials.com
Member name: hcmaterial
Country: China-CN China
Member Since: 18 August 2009
Total Leads: 13 hcmaterial Import Export Business Leads
Business focus: Gpo-3 Profile Shapes, Epoxy  Glass Cloth Laminated Sheets, Fr-4 Tube, G10 Rod, Polyimide Film, Phenolic Paper Laminated  Sheets, Phenolic Cotton Cloth
