Solid bronze bushing is a type of cast self lubricating bearing.This type self-lubricating bearing is
also called solid metal bearing, graphite inlaid bearing, solid lubricating bearing, cast bronze bushing, #500 oilless bearing and solid sliding bearing.
CuSn6Zn6Pb3 + graphite or MOS2
Special suitable for low loads and middle velocity operations, also perform well at high temperature
Excellent resistance to chemical attack and corrosion

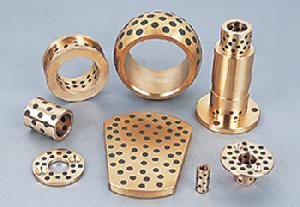

Cylindrical bushing, flanged bushing, thrust washer and slide plate are standard fabrication.
Special designs and material can be made according to your design.
Special material can be made based on your requirement
solid bronze bearing is widely used in fire place door, convey way of the baking furnace, rubber machinery, light industrial machinery, machine tool industry and etc.
Max. dynamic load 60N/mm2
Max. Temperature 350 [ °C ]
Base Hardness HB80-100
Friction coefficient <0.15
Highest sliding speed 2m/s
Contact Name: Jacky Zhang
Company Name: Jiashan PVB Sliding Bearing Co., Ltd
Tel: 0086-573-8435 1979
Fax: 0086-573-8402 7072
Street Address: No 58 Kangxin Road
Dayun Town, Jiashan, Zhejiang, China
Member name: jackyzhang
Member Since: 15 April 2007
Total Leads: 156 jackyzhang Import Export Business Leads
Business focus: Du Bushing, Ptfe Telfon Bushes, Dx Bush, Bimetal Bush, Bronze Bearing, Steel Bush, Brass Bearing, Cast Bearing, Graphite Bearing, Flanged Bushing
Verify: Safe Import Export Tips
Product Category: Oilless bearing
