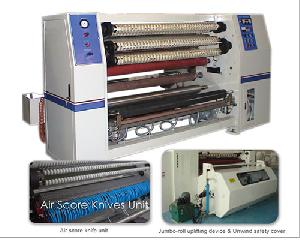

4 shafts auto turret exchange, suitable for slittig/rewinding OPP packaging & stationery
Max. working widths: 1.3m/1.6m Jumb-roll unwind diameter: 800mm
Mini. slitting width: 12mm up (optional) Slitting blade: razor blade(0.2x22x60mm)
Rewind paper core: 3" Max. rewind diameter: 150mm(4 shafts exchange)
1. Equipped with connected unwind base, which is convenience on operationand space saving.
2. Equipped with surface type lay on roller on unwind base to make web wound out more smoothly.
3. Slitting by razor blade, which was designed to slit various film tapes.
4. Driven by one A.C motor with 3 stages type length counter to make machine stops accurately.
5. Rewind tension is controlled by clutch, it works with differential shafts to make tension on each roll the same even when the web thickness is not the same at all.
6. Finished rolls unload and paper cores reload working by core loader (HCSA105), it increases full production capacity.
1. Core Alum. mold: it is needed when slitting different sizes, any sizes can be made on your request.
2. Unwind base: connected shaft type, jumbo-roll uplifting.
3. Auto tabber: label tape roll unwind system.
4. Slitter blade: air scroll knife (width 10mm) with firm roller and guide bar.
5. Noise reduction hood: connected unwind safety cover, hydraulic control.
