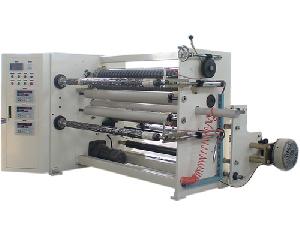

Hcsk Series Film Slitter Rewinder / Paper Slitting Machine

Posted at: Offers to Sell and Export | Posted on: Thu 30 Jul, 2009 2:18 pm | Product Category: Slitters [35]
hcsk film slitter rewinder paper slitting machine
Products Photos CatalogHcsk Film Slitter Photos Catalog


2 shafts center type winding, suitable for slitting/rewinder various OPP, PET, PVC, printing

& packing films etc. (Optional adhesive tape)


Machine Width: 1.0M/1.3M/1.6M

Max. Unwind O.D: 800mm

Rewind Core I.D: 3"

Max. Rewind O.D: 400mm

Min. Slitting Width: 50mm

Machine Speed: 180M / Min


1. Equipped with connected shaft type unwind base and automatic web guide.

2. Unwind tension is automatically controlled by powder brake when jumbo roll O.D is getting smaller.

3. Rewind shaft tension is controlled by differential core sleeve, each of slipping tension is adjustable automatically and individually to control perfect rewind tension on all finished rolls when web thickness is not even the same.

4. Slitting by shear cutter, which were designed for multi-purpose materials converting.

Optional Parts:

1. Unwind Pick-Up Lift : For loading jumbo roll on the machine quickly and time saving.

2. Shaftless Unwind Base : Separated type with hydraulic core chuck can be equipped for efficient and quick performance on jumbo roll change.

3. Connected Splice Table : Splicing materials smoothly in order to decrease production loss.

4. Slitting by shear cutter and razor blade, which were designed for multi-purpose materials converting.

Company Contact:

tchengcheng photo
Contact Name: Roy Lee
Company Name: Taicang Hengcheng Machinery Company Limited
Email: Email
Tel: +86-512-53100920
Fax: +86-512-53100720
Street Address: Taifeng Community,
Taicang City 215400, Jiangsu, China
Website: http://www.slitting-rewinder.com
Member name: tchengcheng
Country: China-CN China
Member Since: 30 July 2009
Total Leads: 9 tchengcheng Import Export Business Leads
Business focus: Slitting Machine, Rewinding Machine, Slitter Rewinder
