Hd-sdi Sdi Asi Opticial Transmission

Posted at: Offers to Sell and Export | Posted on: Fri 25 Sep, 2009 3:58 am |

hd sdi asi opticial transmission
Products Photos CatalogSdi Asi Opticial Photos Catalog

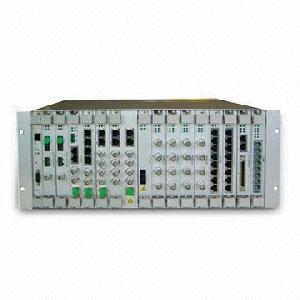

HD-SDI SDI ASI Opticial Transmission

Transmission single-channel bi-directional SDi/ASI digital video


signal over a single fiber Supports many types of redundancy, including 1+1 remote side input redundancy, 1+2 remote side input redundancy and one local input redundancy, to make sure the video signal transmission with high stability

Supports SMPTE 305m (SDTI) 310m (19.4Mbps), 344m (540Mbps), m2s and DVB-ASI (270Mbps) formats for SDI/ASI transmitter and receiver

Supports SMPTE 259m, 297m, 305m, 310m format and up to 1.485Gbps, and DVB-ASI (270Mbps) formats for HD-SDI transmitter and receiver

Transmission distance on the fiber is up to 80km without relay

Specifications:

Power:<dd>Input: 100 to 240V AC<dd>Input: -48V DC

Power consumption: 15W

Video input ports

Format: SMPTE 259m a, b, c, d, 29m, 305m, 310m, 344m, m2s and DVB-ASI up to 1.485Gbps

Number: 3 (two for transmit and one for local backup input)

Return loss: >15dB

Connector: 75 Ohms BNC

Video output ports

Number: 3 (one for local loop out and two for output from remote unit)

Signal level: 800mV

Rise/drop time: 900ps

Return loss: ≥ 15, 15dB

Jitter: Connector: 75 Ohms BNC

Fiber port

Number:

Type: single-mode/multi-mode optional

Wavelength: 1, 310/1, 550nm

Connector: FC, SC and ST optional

Environment:

Operation temperature: 0 to 50 degrees Celsius

Operation relative humidity: 0 to 90% non-condensing

Store temperature: -20 to 65 degrees Celsius

Store relative humidity: 0 to 95% non-condensing

Dimensions (W x D x H): 20.6 x 276 x 173mm

One-channel SDI/ASI transmitter and receiver, standalone and 1, 310nm transmission wavelength, FC connector, 220V AC power supply

F13-HD-1VRB-w3043ca one channel HD-SDI receiver with one remote input and one local input redundancy, standalone, 1, 550nm transmission wavelength, SC connector and 220V AC power supply
