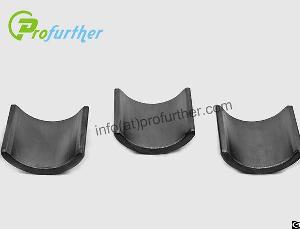

High Grade Arc Ferrite Magnet For Electric Motors From Anhui

Posted at: Offers to Sell and Export | Posted on: Wed 24 May, 2017 9:33 am | Targeted Countries: Czech Republic | Vietnam | USA Product Category: Sinteredanisotropic ferrite magnet assembly [3]

grade arc ferrite magnet electric motors anhui
Products Photos CatalogGrade Arc Ferrite Photos Catalog



Material: ferrite, ceramic

Manufacturing technology: Wet Anistropic, Sintered


Orientation: Radial

Shape:

arc segment

Size: customized

Certification: ISO/TS16949, RoHs

Application: Household appliance, automotive motors, power tool

Main Properties we can do:

Material Br HcB HcJ (BH)max

mT Gs kA/m Oe kA/m Oe kJ/m MGOe

Y30h-1 380-400 ≥3800 230-275 ≥2890 235-290 2950 27.0-32.5 ≥3.4

Y30h-2 395-415 ≥3950 275-300 ≥3460 310-335 3900 27.0-32.0 ≥3.4

Y32 400-420 ≥4000 160-190 ≥2010 165-195 2070 30.0-33.5 ≥3.8

Y32h-1 400-420 ≥4000 190-230 ≥2390 230-250 2890 31.5-35.0 ≥4.0

Y32h-2 400-440 ≥4000 224-240 ≥2810 230-250 2890 31.0-34.0 ≥3.9

Y33 410-430 ≥4100 220-250 ≥2760 225-255 2830 31.5-35.0 ≥4.0

Y33h 410-430 ≥4100 250-270 ≥3140 250-275 3140 31.5-35.0 ≥4.0

Y34 420-440 ≥4200 200-230 ≥2510 205-235 2580 32.5-36.0 ≥4.1

Y35 430-450 ≥4300 215-239 ≥2700 217-242 2730 33.1-33.2 ≥4.2

Y36 430~450 ≥4300 247~271 ≥3102 250~274 3140 35.1~38.3 ≥4.4

Y38 440~460 ≥4400 285~305 ≥3580 294~310 3693 36.6~40.6 ≥4.6

Y40 440~460 ≥4400 330~354 ≥4145 340~360 4270 37.6~41.8 ≥4.7

Physical property of hard ferrite magnets:

Curie Temperature (C): 450

Maximum Operating Temperature (C): 250

Hardness (Hv) : 480-580

Density (g/cm3): 4.8 - 4.9

Relative Recoil Permeability (μrec) : 1.05 - 1.20

Saturation Field Strength, kOe (kA/m): 10 (800)

Temperature Coefficient of Br (%/C): -0.2

Temperature Coefficient of iHc (%/C): 0.3

Tensile Strength (N/mm): <100

Transverse Rupture Strength (N/mm): 300
