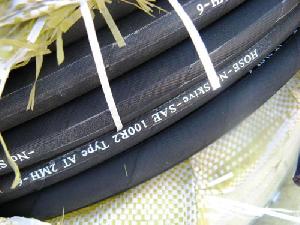

Hydraulic Rubber Hose-sae100 R2at

Posted at: Offers to Sell and Export | Posted on: Wed 24 Feb, 2010 7:00 am | Product Category: Hydraulic hose [134]

hydraulic rubber hose sae100 r2at
Products Photos CatalogHydraulic Rubber Hose Photos Catalog



2sn/r2at

1.Features:


Tube: Oil resistant synthetic rubber

Reinforceent: two high tensile steel

wire layers 2W

Cover Compound: Abrasion and weather resistant synthetic rubber

Temperature range: -40 ℃ - +100 ℃

2. Technique Specifications:

DN Hose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length

inch mm mm mm MPa psi MPa psi mm kg/m metres

5 3/16 4.8 11.1 13.4 41.4 6000 16 23720 89 0.32 50/100

6 1/4 6.4 12.7 15.0 40.0 5800 160 22840 102 0.36 50/100

8 5/16 7.9 14.3 16.6 36.0 5250 140 20000 114 0.45 50/100

10 3/8 9.5 16.7 19.0 33.1 4800 132 18840 127 0.54 50/100

13 1/2 12.7 19.8 22.2 27.6 4000 110 15720 178 0.68 50/100

16 5/8 15.9 23 25.4 25.0 3630 100 14280 203 0.8 50/100

19 3/4 19.0 27 29.3 21.5 3120 85 12280 241 0.94 50/100

25 1 25.4 34.9 38.0 16.5 2400 65 9420 305 1.35 50

32 1 1/4 31.8 44.5 48.3 12.5 1820 50 7140 419 2.15 20 to 40

38 1 1/2 38.1 50.8 54.6 9.0 1310 36 5140 508 2.65 20 to 40

51 2 50.8 63.5 67.3 8.0 1160 32 4560 635 3.42 20 to 40
