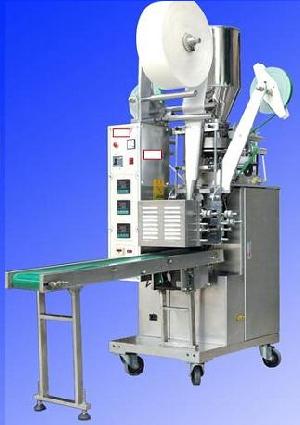

Instant Tea Bag Filling And Packing Machine
Posted at: TradersCity --> Offers to Sell and Export
Posted on: Wed 23 Jul, 2008 7:57 am
Model: Tk-tpy-11ch
Instant Tea Bag Filling & Packing Machine
Brief Introduction:-
Model: Tk-tpy-11ch Is The Ideal Instant Tea Bag Filling And Packing Machine Complete Production Online Especially For Refined Tea And Coffee Instant Bag With Drawn Thread And Customized Label Tag.
It Is Complete With Fully Auto Function As Follows:-
- Automatic Filling Measurement Of Refined Tea Leaves
- Automatic Insertion And Feeding Of Drawn Thread
- Automatic Customized Label Tag Attachment
- Pre-program Cutting
- With Automatic Unit Counter
Costs Effective, Single Operator, User-friendly And High Productivity
Recommendation: For The Filling And Packing Of All Type Of Refined Tea, Coffee And Others.
Technical Data:-
Measurement - Volume Metric Method
Measuring Scope - 2.5-10ml About 1.505gsm Of Refined Tea Leave
Bag Size - Min. 50 X 50mm; Max.65 X 80mm
Label Tag Size - 28mm (w) X 25-30mm (l)
Packing Speed - 30 – 60 Bags Per Minute
Machine Weight - 450 Kg
Input Power Supply - Ac220v 50 Hz
Total Power - 1.6kw
Main Motor - Ac 220v 370w Single Phase 14000rpm
Heater - Ac 110v 250w 2 Pcs / Ac 110v 300w 2 Pcs
Central System - About 40w
_________________
Contact Name: Andy Lou
Company Name: Jiaxing Patsons Machinery & Electronics Co., Ltd
Email: Andylouz@yahoo.cn
Tel: 86 573 82571919
Fax: 86 573 82571313
Street Address: Patsons M & E
Building 101, Weiyi Road, Dongsha
Industrial Zone, Nanhu District, Jiaxing City,
Zhejiang Province, China
|
Posted By Ppdandylou
Country:  China
Member Since: 17 July 2008
Total Leads: 15
Business focus: Packaging Machine, Printing Machine, Aluminium Foil Container, Aluminium Foil Container Machine, Aluminium Roll Online Machine, Paper Converting Machine

|
|
|
|
|
|
|
|
|
