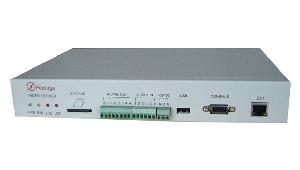

Intelligent Ditigal Ip Video Server

Posted at: Offers to Sell and Export | Posted on: Wed 01 Sep, 2010 6:48 am |
intelligent ditigal ip video server
Products Photos CatalogIntelligent Ditigal Photos Catalog

Fibridge IP video server can easily be upgraded to intelligent video analysis server.



state-of-the-art H.264 or MPEG4 encoding technology

Support Full D1 resolution(704*576), speed rate is 25 frames/sec;

Provide 1 Video, 1Audio, 1 RS485 Data, 2 alarm input/output ports

OSD supported. Customized information, such as system time, words and pictures settings available

Support USB(host 1.1) port and SD card, easily to store and record video

Support Pelco-P, Pelco-D and YAAN

Setting parameter and watch video images by using WEB

Fi-View-VS managed software provide multi-picture, support digital video motion detection and event triggered alarm processing;

Intelligent analytic system allows authorized viewers make setting regularly, it could make judgment for aware of objects, cross boundary, tripwire, multi-line tripwire etc., support alarm output and storage



Main Processor: High performance embedded microprocessor

Operating System: LINUX

management software : Fi-View-VS


Connector: RCA

Audio CompressionG.711, ADPCM


Video Input:1 Channel, 1.0Vp-p, 75Ω

Video Standards: PAL(625Line, 50f/s), NTSC(525Line.60f/s)

Video Compression: H.264

Video Resolution: D1/ HalfD1/ CIF/ QCIF

Frame speed: PAL 1f/s-25f/s NTSC 1f/s-30f/s

Connector: BNC


Rate: 10/100Mbps auto-detectable

Connector: RJ45

Half/Full Duplex auto-negotiation


PTZ control, Connecter: Terminal Block with Screw Clamps connector


2 channel bi-directional

Connector: Terminal Block with Screw Clamps

Normally open for output

Nominal switching capacity: 3A/277VAC or 3A/30VDC

USB Interface

1 Host port

Compatible with USB 1.1 U-disk

SD Interface

Compatible with popular SD cards


Power Supply: 12VDC

Power consumption: <10W

Working Temperature: 055

Working Humidity: 10%90%

Atmosphere Pressure: 86kpa106kpa

Company Contact:

bjfibridge photo
Contact Name: Siya Liu
Company Name: Beijing Fibridge Co., Ltd
Email: Email
Tel: +86 10 58858988
Fax: +86 10 58858520
Street Address: A402, Power Creative
Bldg, No. 1 Shangdi East Rd, Haidian
District, Beijing, 100085 China
Website: http://www.fibridge.com
Member name: bjfibridge
Country: China-CN China
Member Since: 01 September 2009
Total Leads: 57 bjfibridge Import Export Business Leads
Business focus: Intelligent Video Analysis, Ip Video Surveillance, Video Optical Transmitter, Media Converter, Protocol Converter, Pdh Multiplexer, 155m Sdh, Mstp, Msap
