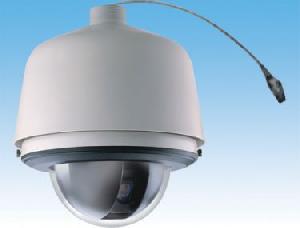

Ip High Speed Dome Camera

Posted at: Offers to Sell and Export | Posted on: Mon 29 Dec, 2008 1:42 am |
ip dome camera
Products Photos CatalogDome Camera Photos Catalog

Basic function

 H264 compression technique with high compression rate and flexible processing

 Support

20 channels online monitoring; support C/S mode; the webserver embedded inside provides convenient B/S access

 Multilevel user rights management ensuring system security

 Support RS-485 and RS-232 interface which can support third party PTZ device or other serial device. Support transparent transmission and the particular function made by our company: virtual matrix

 Powerful alarm management and event processing, including video lost, video motion alarm, sensor input, sensor output, alarm linkage, alarm automatic connection, alarm log, can help you handle various contingencies; 2 channels on-off trigger sensor input, 2 channels sensor output; additional alarm devices such as alarm host, access control system etc. can connect with server via COM port.

Compression processing function

 Support 1 channels video signal, support real time 30 F/S FULL D1(NTSC:30 F/S,PAL:25 F/S) resolution independent compression. The video compression uses MPEG4 and H264 compression standard, supporting bit rate and frame rate adjusting. it can set the image quality and restrict the compression stream size of video.

 Support FULL D1(PAL:720*576, NTSC:720*480)、CIF(PAL:352*288, NTSC:352*240)、QCIF(PAL:176*144, NTSC:176*120)、HALF-D1(PAL:720*288, NTSC:720*240)resolution

 Support OSD, date/time display position and gray scale setting, data/time automatic display

 Support LOGO display and video mask. LOGO and video mask position can be displayed on any place in image

Network ability

 Support a 10M/100M compatible Ethernet port

 Support TCP/IP protocol, software or browser, parameter configuration, real time video and audio browse, the status of IP Camera or IP Dome checking, network alarm, compression stream saving via network;

 PTZ control and camera parameter configuration such as aperture, focal length via network

 Remote upgrade and maintenance via network

 RS-485 and RS232 interface supports transparent channel connection, clients can control serial devices via transparent channel of IP Camera or IP Dome

2. Applications

Various situations where need network remote surveillance, for example:

ATM, Bank cashier, Supermarket, Manufactory etc. Network surveillance

Nursing room, Kindergarten, School remote surveillance service

Intelligent access control system

Intelligent building, intelligent residential district management system

Power station, Telecom station automatic surveillance system

Outdoor device surveillance management

Bridge, Tunnel, Crossing traffic surveillance system

Production line and warehouse surveillance

Forest, Waterhead, River source remote surveillance


Back box Aluminum

Dome drive Aluminum

Lower cover Polypropylene Transparent cover

Dimension See Dimension drawing

Weight (approximate) Unit weight shipping weight

Outdoor pendant

3.2kg 7.5kg

Operation Environment indoor/outdoor

Working temperature -5C ~50C(Indoor); -40C ~60C(outdoor)
