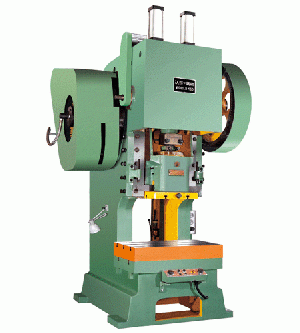

J21 Seris C-frame Fixed Bolster Presses Products In Stock And In A Competitive Price From China

Posted at: Offers to Sell and Export | Posted on: Mon 12 Jan, 2009 2:48 am |

j21 seris c frame fixed bolster presses stock
Products Photos CatalogJ21 Seris Frame Fixed Photos Catalog



Features

Applicable open back crank press with fixed bed, adopting dry friction clutch, which makes



it possible to stop the slide rapidly in any position. At the same time, it realizes the function of single time, inch moving and continuous working, and helps to adjust the positions of the mould and work piece, therefore the machining accuracy will improve. Imported PLC is adopted to control the machine concentratedly, and it is equipped with safe double-connection valve and balance cylinder to ensure the reliability. Protective photo-electric equipment is adopted to ensure it to be a safety type press machine.

Model J21-80

Rated pressure(KN) 800

Nominal stroke(mm) 7

Slide strokes per minute/ High speed(times/min) 40

Maximum die set height(mm) 330

Throat depth(mm) 330

Distance between uprights(mm) 420

Slide bottom size LR(mm) 400 FB(mm) 360

Stemhole size Dia(mm) 50 Depth(mm) 70

Bolster size LR(mm) 310 FB(mm) 200

Bolster thickness(mm) 90

Bolster surface height(mm) 900

Overall dimensions LR(mm) 1630 FB(mm) 1960 H(mm) 2900

Motor power(kw) 7.5

Weight(kg) 6100



Company Contact:

No member photo
Contact Name: Irene
Company Name: Weihai Datian Machine Tools Co. Ltd
Email: Email
Tel: 86-631-5313579
Fax: 86-631-5333569
Street Address: Rm1306-1309, No. 106
Northern Coastal Rd. Weihai, Shandong, China
Website: http://www.whdt.cn
Member name: Weihaidatian
Country: China-CN China
Member Since: 16 July 2008
Total Leads: 22 Weihaidatian Import Export Business Leads
Business focus: Cutting, Engravine, Grindering, Planing, Drilling, Milling Machine
