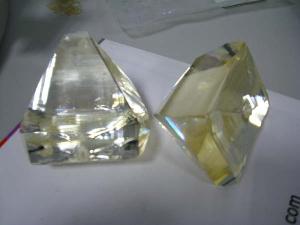

Ktp Nonlinear Crystals Potassium Titanyl Phosphate For Opo Laser System Application

Posted at: Offers to Sell and Export | Posted on: Sat 14 Mar, 2009 12:48 am | Product Category: Potassium phosphate [7]
ktp nonlinear crystals potassium titanyl phosphate opo laser system
Products Photos CatalogKtp Nonlinear Crystals Photos Catalog

KTP for SHG of Nd:lasers

Potassium Titanyl Phosphate(KTP) is a positive biaxial crystal, with the principal

axes X, Y, and Z (n z >n y >n x ) parallel to the crystallographic axes a, b, and c, respectively Large nonlinear optical coefficient

KTP is the most commonly used material for frequency doubling of Nd:YAG lasers and other Nd-doped lasers, particularly at the low or medium power density. KTP for OPO

As an efficient OPO crystal pumped by the fundamental and second harmonics of a Nd:YAG or Nd:YLF laser, KTP plays an important role in parametric sources for tunable output from visible (0.6mm) to mid-IR (4.5mm). NCPM KTP OPO pumped by 1064nm, the signal output is around eye safe wavelength, find applications in eye-safe devices. The NCPM KTP OPO keeps the KTP crystal fixed in X-axis and tunes the pumping wavelength. If 1064nm pumping source, the output will be at 1.57mm (signal) and 3.3 mm (idler).

KTP Specifications:

Dimension tolerance (W 0.1 mm) x (H 0.1 mm) x (L + 0.2mm/-0.1mm)

Wavefront distortion: l /8 @ 633 nm

Clear aperture: > 90% central area

Flatness: l /8 @ 633 nm

S/D: 10/5 to MIL-O-13830A

Parallelism: better than 20 arc seconds

Perpendicularity: 12 arc minutes

Angle tolerance: Dq < 0.2, Dj < 0.2

AR coating: R< 0.1% at 1064nm and R<0.4% at 532 nm.

Optical damage threshold 500MW/cm 2, (@ 1.064mm, 10ns, 10Hz)

Standard Product

K3010 OPO Application 3x3x10mm3

K5020 OPO Application 5x5x20mm3

K7035 OPO Application 7x7x30mm3

K8020 OPO Application 8x8x20mm3

K7205 SHG@1064 7x7x5mm3

K9207 SHG@1064 9x9x7mm3

K3201 SHG@1064 3x3x10mm3
